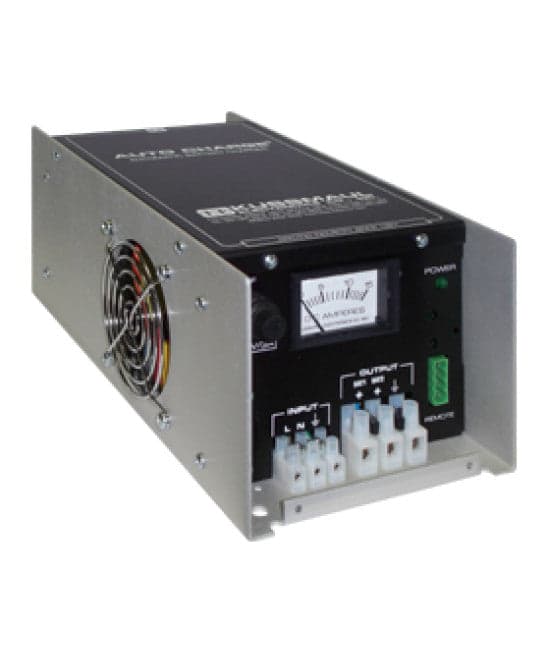

The Kussmaul Auto Charge 11 DV is a fully automatic, dual-bank battery charger designed to independently charge and maintain two 12-volt vehicle battery banks. Featuring selectable 115V or 230V AC input operation, the Auto Charge 11 DV is well suited for emergency and specialty vehicles operating in locations with different available shore power voltages.
Independent sensing circuits monitor and control the charging voltage and current supplied to each battery bank, preventing parasitic loads or charging demands on one battery from affecting the other. A patented voltage sensing circuit checks battery voltage 120 times per second and compensates for voltage drop in the charging wires, helping provide faster battery recovery while preventing overcharging.
The charger automatically proportions available charging current between the two battery banks based on charging demand. When one battery does not require charging, the full available charger output can be directed to the other battery to optimize use of the charger's capacity.
A front-panel ammeter provides convenient monitoring of total charger output current, while optional remote bar graph displays and LED indicators allow charging status to be monitored from another location on the vehicle.
Features
• Fully automatic battery charger for dual 12-volt battery banks
• 11-amp total charging output capacity
• Selectable 115V or 230V AC input operation
• Independent sensing circuits monitor and control voltage and current to each battery bank
• Charging demands on one battery bank do not affect charging performance of the second battery
• Patented voltage sensing circuit checks battery voltage 120 times per second
• Compensates for voltage drop in charging wires
• Helps provide quick battery recharge without overcharging
• Automatically proportions available charging current between both battery banks based on charging demand
• Full available charger output can be supplied to either battery when the other bank does not require charging
• Optimizes available charging power for battery banks with different charging requirements
• Front-panel ammeter provides convenient monitoring of total charger output current
• Optional remote bar graph display available
• Optional remote LED indicator available
• Rugged construction designed for vehicle-mounted installations
• Automatic float charging operation
• Designed for vehicles with similarly sized dual battery banks
• Ideal for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Dual-Bank Dual-Voltage Vehicle Battery Charger
• Charger Configuration: Dual Output
• Battery Banks Supported: 2
• Output Voltage: 12 VDC
• Output Current: 11 Amps
• Charging Profile: Float
• Battery Voltage Sampling Rate: 120 Times Per Second
• Voltage Drop Compensation: Yes
• AC Input Voltage: Selectable 115V or 230V AC
• Rated Input Voltage: 120/230 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 2.5 Amps
• Input Fuse: 3 Amps, Fast Acting
• Output Fuse: 22 Amps
• Charge Indicator: 0 to 15 Amp Front-Panel Ammeter
• Remote Display Options: Bar Graph Display or LED Indicator
• Low-Profile Design: No
• EV Series: No
• Weight: 12 lbs.
• Warranty: 3 Years
