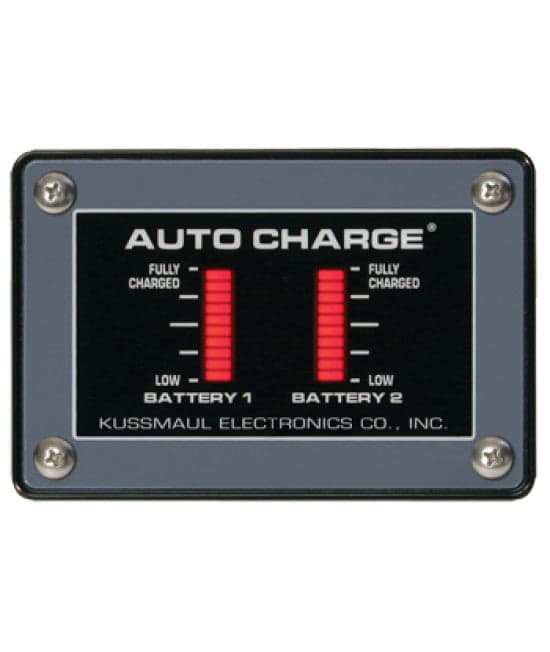

The Kussmaul Auto Charge 11 / Euro Charger II Dual Bar Graph Display is a remote battery status indicator designed for select Kussmaul dual-bank battery chargers. Featuring two bar graph displays, the indicator provides convenient visual monitoring of the charging system from an accessible location on fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles.
Designed for compatibility with the Kussmaul Auto Charge 11, Auto Charge 11 HO, Euro Charger II, and Euro Charger II VHO, the display connects directly to the compatible battery charger according to the charger's installation instructions. Its remote-mounted design allows operators to monitor the charging system without accessing the charger itself.
The indicator installs through a square panel opening and is secured with four supplied #8-32 mounting screws. Care should be taken during installation to avoid overtightening the mounting screws, which could damage the plastic bezel and compromise the watertight seal.
Features
• Remote dual bar graph display for select Kussmaul dual-bank battery chargers
• Two bar graph displays provide convenient visual monitoring of the charging system
• Compatible with Kussmaul Auto Charge 11 battery chargers
• Compatible with Kussmaul Auto Charge 11 HO battery chargers
• Compatible with Kussmaul Euro Charger II battery chargers
• Compatible with Kussmaul Euro Charger II VHO battery chargers
• Allows charging system status to be monitored from an accessible location on the vehicle
• Connects directly to the compatible charger according to the charger installation instructions
• Panel-mounted design provides a clean, permanent vehicle installation
• Plastic bezel incorporates a watertight seal when properly installed
• Includes four #8-32 mounting screws
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Remote Dual Bar Graph Battery Charger Display
• Display Type: Dual Bar Graph
• Mounting Type: Panel Mount
• Compatible Charger: Kussmaul Auto Charge 11, Part Number 091-11-12
• Compatible Charger: Kussmaul Auto Charge 11 HO, Part Number 091-11HO-12
• Compatible Charger: Kussmaul Euro Charger II, Part Number 091-117-12
• Compatible Charger: Kussmaul Euro Charger II VHO, Part Number 091-143-12
• Mounting Hardware: Four #8-32 Screws
• Installation Requirement: Square Panel Cutout
• Connection: Connects to Compatible Kussmaul Battery Charger According to Charger Installation Instructions
• Installation Caution: Do Not Overtighten Mounting Screws, as Damage to the Plastic Bezel May Compromise the Watertight Seal
