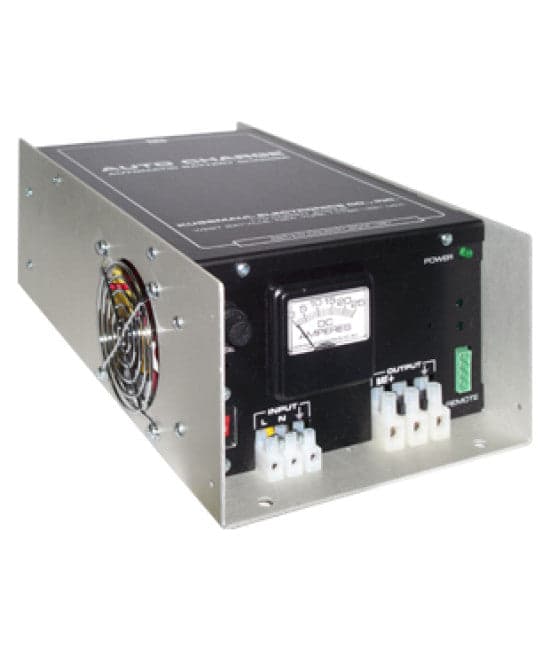

The Kussmaul Auto Charge 12 HO DV is a high-output, fully automatic battery charger designed to charge and maintain a single 12-volt battery bank in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. Delivering a 20-amp charging output, the charger features dual-voltage AC input capability with a front-panel selector switch for operation from 120V or 240V, 50/60 Hz power sources.
A patented Sample & Hold sensing circuit checks the battery voltage 120 times per second to determine actual battery voltage and compensate for voltage drop caused by current flowing through the charging wires. This precise voltage sensing helps provide rapid battery recovery while maintaining the proper float voltage and preventing overcharging.
Automatic current limiting protects the charger from overload conditions when charging deeply discharged batteries or supplying large parasitic electrical loads. A front-panel ammeter provides convenient monitoring of charger output current, while an optional vehicle-mounted remote indicator allows charging status to be monitored from another location on the apparatus.
Built with a heavy-duty aluminum enclosure, protective front panel plate, and wire strain relief, the Auto Charge 12 HO DV is designed to withstand the shock and vibration encountered in demanding vehicle-mounted installations.
Features
• High-output, fully automatic battery charger for a single 12-volt battery bank
• 20-amp charging output capacity
• Front-panel selector switch for 120V or 240V AC input operation
• Supports 50/60 Hz AC input power
• Automatic float charging regulates output to the connected battery bank
• Patented Sample & Hold sensing circuit monitors actual battery voltage
• Checks battery voltage 120 times per second
• Compensates for voltage drop caused by current flowing through charging wires
• Helps provide rapid battery recharge while maintaining precise float voltage
• Helps prevent battery overcharging
• Automatic current limiting protects the charger when charging deeply discharged batteries or supplying large parasitic loads
• Front-panel ammeter provides convenient monitoring of charger output current
• Optional vehicle-mounted remote indicator available
• Heavy-duty aluminum enclosure designed for demanding vehicle installations
• Protective front panel plate helps protect charger components
• Integrated wire strain relief supports secure electrical connections
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Model: 091-170-DV-12
• Product Type: Automatic High-Output Dual-Voltage Vehicle Battery Charger
• Charger Configuration: Single Battery Bank
• Output Voltage: 12 VDC
• Output Current: 20 Amps
• Charging Profile: Float
• Voltage Sensing Technology: Patented Sample & Hold Circuit
• Battery Voltage Sampling Rate: 120 Times Per Second
• Voltage Drop Compensation: Yes
• AC Input Voltage: Selectable 120/240 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 4 Amps at 120 VAC / 2 Amps at 240 VAC
• Input Fuse: 8 Amps, Fast Acting
• Output Fuse: 40 Amps
• Charge Indicator: 0 to 25 Amp Front-Panel Ammeter
• Automatic Current Limiting: Yes
• Remote Display Included: Yes
• Optional Indicator: Vehicle-Mounted Remote Indicator
• Parasitic Load Compensation: No
• Low-Profile Design: No
• Enclosure Construction: Heavy-Duty Aluminum
• EV Series: No
• Weight: 19 lbs.
• Warranty: 3 Years
