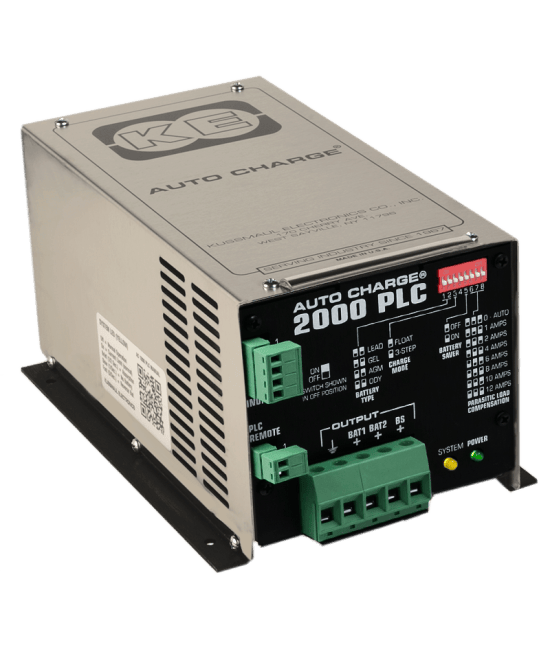

The Kussmaul Auto Charge 2000 PLC is a microprocessor-controlled, fully automatic battery charger and Battery Saver system designed for emergency and specialty vehicles equipped with dual 12-volt battery banks. Providing 18 amps of total output capacity, the system combines a 15-amp battery charger with a 3-amp Battery Saver output to maintain vehicle batteries while supporting auxiliary electrical loads.
Parasitic Load Compensation allows the charger to account for continuous accessory loads from equipment such as flashlights, gas detectors, computers, and monitoring systems. By allowing the installer to enter the vehicle's total parasitic load current, the charger adjusts the absorption-stage transition point so the batteries can properly transition to float voltage at the desired charging current. This helps prevent parasitic loads from causing extended charging cycles, battery overcharging, and excessive heating.
A precision electronic voltage controller monitors battery voltage without requiring separate sense wires. Battery type selection switches allow charging parameters to be configured for Lead-Acid, Gel Cell, AGM, or Odyssey batteries, while selectable Float and 3-Step charging modes provide additional flexibility for different vehicle electrical systems.
Designed to withstand the shock and vibration of vehicle-mounted installations, the Auto Charge 2000 PLC includes a dual bar graph remote display for convenient battery monitoring and is compatible with select Kussmaul Auto Eject Deluxe Cover configurations.
Features
• Microprocessor-controlled automatic battery charger for dual 12-volt battery banks
• 18-amp total system output capacity
• Provides 15 amps of battery charging output and a 3-amp Battery Saver output
• Battery charger output increases to 18 amps when the Battery Saver is turned off
• Parasitic Load Compensation helps prevent overcharging caused by continuous onboard accessory loads
• Allows user input of total vehicle parasitic load current
• Automatically adjusts the absorption-stage transition point based on programmed accessory loads
• Helps batteries transition properly to float voltage despite continuous parasitic electrical loads
• Precision electronic voltage sensing eliminates the need for separate battery sense wires
• Independently manages charging for a dual battery bank system
• Selectable battery types include Lead-Acid, Gel Cell, AGM, and Odyssey
• Selectable Float and 3-Step charging modes
• Integrated 3-amp Battery Saver output provides 13 VDC power for auxiliary electrical loads
• Green LED indicates when 120 VAC input power is applied
• Yellow system status LED provides charger operating information
• Includes Kussmaul 091-39-IND dual bar graph remote display
• Compatible with select 15-amp and 20-amp Kussmaul Auto Eject Deluxe Cover configurations
• Designed to withstand shock and vibration encountered in vehicle-mounted applications
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Dual-Bank Battery Charger with Parasitic Load Compensation and Battery Saver
• Charger Configuration: Dual Battery Bank
• Charger Output Voltage: 12 VDC
• Charger Output Current: 15 Amps
• Maximum Charger Output with Battery Saver Off: 18 Amps
• Battery Saver Output: 13 VDC, 3 Amps
• Total System Output Capacity: 18 Amps
• Charging Profiles: Float and 3-Step, Selectable
• Battery Type Selections: Lead-Acid, Gelled Electrolyte (Gel Cell), AGM, and Odyssey
• Parasitic Load Compensation: Yes
• Voltage Sensing: Electronic; Separate Sense Lines Not Required
• AC Input Voltage: 120 VAC
• Input Frequency: 60 Hz
• Maximum Input Current: 3.5 Amps
• Input Fuse: 6 Amps, Fast Blow
• Output Fuse: 40 Amps
• Output Fuse Part Number: 090-0040-0
• Included Remote Display: Dual Bar Graph Display, Part Number 091-39-IND
• Remote Display Options: Yes
• AC Power Indicator: Green LED
• System Status Indicator: Yellow LED
• DC Output Connector Torque: 15 in-lbs.
• Compatible Auto Eject Deluxe Cover Configurations: 63-11-7106 (20 Amp) and 61-11-7106 (15 Amp)
• Low-Profile Design: No
• EV Series: No
• Weight: 11 lbs.
• Warranty: 3 Years
