Description

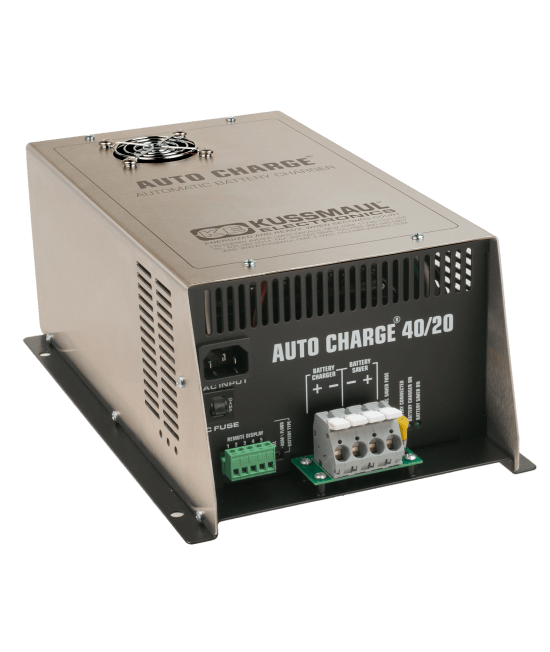

The Kussmaul Auto Charge 40/20 is a fully automatic, integrated battery charger and Battery Saver Low Ripple system designed for emergency and specialty vehicles equipped with a single 12-volt battery bank. Providing 60 amps of total output capacity, the Auto Charge 40/20 combines a 40-amp battery charger with a separate 20-amp Battery Saver output to maintain the vehicle battery while supplying uninterrupted power to auxiliary electrical loads.
The modified three-step charging system automatically regulates charging output and includes a one-hour boost stage for rapid battery recovery when AC power is applied. A battery type selector switch allows charging parameters to be configured for Lead-Acid/AGM or Gel-Cell batteries, helping provide the proper boost and float voltages for the connected battery type.
The integrated Battery Saver Low Ripple output transfers accessory loads away from the vehicle battery while the vehicle is connected to shore power, helping prevent battery discharge caused by parasitic electrical loads. Its clean, low-ripple output is designed to power radios and other sensitive mobile electronics without creating electrical interference while providing uninterrupted power to connected accessory loads.
Built for vehicle-mounted applications, the Auto Charge 40/20 includes automatic current limiting, reverse polarity protection, resettable AC input circuit breaker protection, and a waterproof output circuit breaker. The ruggedized construction is designed to withstand the shock and vibration encountered in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles.
Features
• Integrated automatic battery charger and Battery Saver Low Ripple system
• Designed for vehicles with a single 12-volt battery bank
• 60-amp total system output capacity
• 40-amp maximum battery charging output
• Separate 20-amp Battery Saver Low Ripple output for auxiliary electrical loads
• Modified three-step charging profile for automatic battery charging and maintenance
• One-hour boost voltage stage begins when AC power is applied for rapid battery recovery
• Automatically regulates charging output to the connected battery bank
• Battery type selector switch provides charging settings for Lead-Acid/AGM or Gel-Cell batteries
• Lead-Acid/AGM setting provides 14.0 VDC boost voltage and 13.2 VDC float voltage
• Gel-Cell setting provides 13.8 VDC boost voltage and 13.4 VDC float voltage
• Battery Saver output helps prevent parasitic accessory loads from discharging the vehicle battery while in station
• Battery Saver provides uninterrupted power to connected accessory loads
• Clean, low-ripple output helps prevent interference with radios and other sensitive mobile electronics
• Battery Saver output protected by a replaceable 20-amp ATC fuse
• Automatic current limiting provides charger overload protection
• Reverse polarity protection helps protect the charger from incorrect battery connections
• Resettable AC input circuit breaker protection
• Waterproof output circuit breaker provides additional electrical protection
• LED indicators display Battery Connected, Battery Charger On, and Battery Saver On status
• Ruggedized for the shock and vibration encountered in vehicle-mounted applications
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-234-XXX with Bar Graph Display
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-194-XXX with Digital Display
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Single-Bank Battery Charger with Battery Saver Low Ripple
• Charger Configuration: Single Battery Bank
• Total System Output Capacity: 60 Amps
• Battery Charger Output: 12 VDC, 40 Amps Maximum
• Battery Saver Output: 14.0 VDC, 20 Amps Maximum
• Charging Profile: Modified 3-Step
• Battery Type Selections: Lead-Acid/AGM or Gel-Cell
• Lead-Acid/AGM Charging Voltages: 14.0 VDC Boost / 13.2 VDC Float
• Gel-Cell Charging Voltages: 13.8 VDC Boost / 13.4 VDC Float
• Boost Voltage Timer: 1 Hour, Starting When AC Power Is Applied
• AC Input Voltage: 120 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 8.5 Amps
• Input Protection: 10-Amp Resettable Circuit Breaker
• Battery Saver Output Fuse: 20-Amp ATC Fuse, Part Number 091-FUS0257020
• Output Protection: 50-Amp Waterproof Circuit Breaker, Part Number 090-0050-0
• LED Status Indicators: Battery Connected, Battery Charger On, and Battery Saver On
• Automatic Current Limiting: Yes
• Reverse Polarity Protection: Yes
• Remote Display Included: Yes
• Parasitic Load Compensation: No
• Low-Profile Design: No
• EV Series: No
• Weight: 13 lbs.
• Warranty: 3 Years
