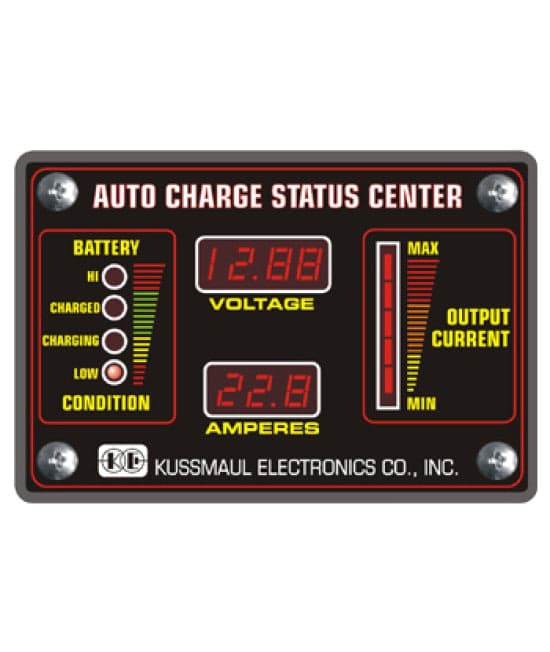

The Kussmaul Auto Charge Deluxe Status Center is a remotely mounted vehicle charging system display designed to provide comprehensive monitoring of battery condition, battery voltage, and charger output current. Designed for compatible Kussmaul AC 1000 Series, AC 1200 Series, Pump Plus Series, and LPC Series battery chargers, the Deluxe Status Center allows operators to monitor critical charging system information from an accessible location on the vehicle.
The display combines a precision 3 1/2-digit battery voltage indicator, a 3-digit charger current indicator, a 5-segment output current bar graph, and four LED battery condition indicators. The LEDs identify high voltage, fully charged, charging, and low voltage conditions, while the high- and low-voltage LEDs flash when potentially abnormal electrical system conditions are detected.
Designed for exterior vehicle mounting, the Auto Charge Deluxe Status Center features a weatherproof enclosure and fits standard Kussmaul indicator panel cutouts. Charger compatibility must be specified when ordering to ensure the correct configuration for the vehicle's charging system.
Features
• Remote digital monitoring display for compatible Kussmaul battery chargers
• Displays vehicle battery voltage and battery charger output current
• 3 1/2-digit digital display provides precise battery voltage readings
• 3-digit digital display provides battery charger output current readings
• 5-segment bar graph provides visual indication of charger output current
• Four LED indicators provide quick visual identification of battery condition
• Displays high voltage, fully charged, charging, and low voltage conditions
• High- and low-voltage LEDs flash when abnormal electrical conditions are detected
• Voltage measurement accuracy of 30 millivolts
• Charger current measurement accuracy of 100 millivolts
• Weatherproof enclosure for exterior vehicle mounting
• Fits standard Kussmaul indicator panel cutouts
• Compatible with select Auto Charge, Pump Plus, and LPC battery chargers
• Charger model must be specified when ordering
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Remote Digital Battery Charger Status Display
• Display Configuration: Dual Digital Displays, 5-Segment Bar Graph, and Four LED Status Indicators
• Battery Voltage Display: 3 1/2-Digit Digital Display
• Charger Current Display: 3-Digit Digital Display
• Output Current Indicator: 5-Segment Bar Graph
• Monitored Functions: DC Battery Voltage, Charger Output Current, and Battery Condition
• Input Voltage: 12 VDC from Battery
• Voltage Accuracy: 30 Millivolts
• Charger Current Accuracy: 100 Millivolts
• High Voltage Indication: 14.82 VDC and Above
• Fully Charged Indication: 13.08 to 14.82 VDC
• Charging Indication: 12.84 to 13.08 VDC
• No LED Indication: 12.30 to 12.84 VDC
• Low Voltage Indication: 12.30 VDC and Below
• Compatible Chargers: Auto Charge 1000, Auto Charge 1200, Auto Charge 1200 Remote, Pump Plus 1000, Pump Plus 1200, LPC 20, LPC 40, and LPC 80
• Enclosure: Weatherproof
• Mounting Compatibility: Standard Kussmaul Indicator Panel Cutouts
• Weight: 0.25 lbs.
• Warranty: 3 Years
