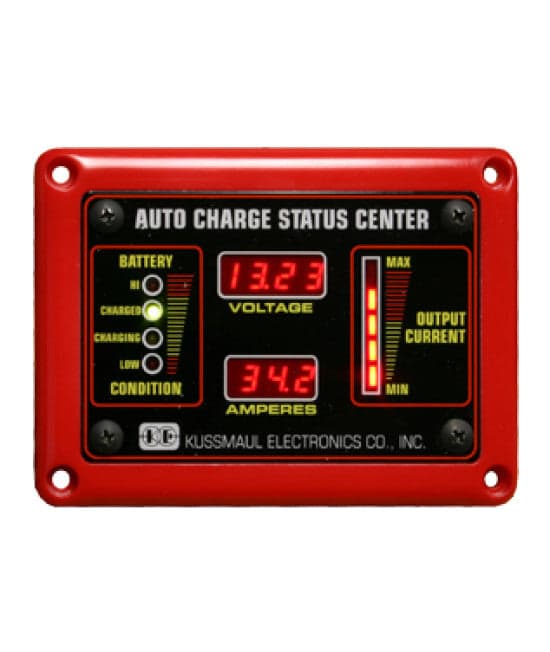

The Kussmaul Auto Charge Deluxe Watertight Status Center is a remotely mounted vehicle charging system display designed to provide battery condition, battery voltage, and charger output current monitoring in demanding environments. Designed as an optional remote indicator for compatible Kussmaul AC 1000 Series, AC 1200 Series, and LPC Series battery chargers, the Watertight Status Center allows operators to monitor critical charging system information from an accessible location on the vehicle.
The digital display provides battery voltage and charger output current information, while dedicated LED indicators provide quick visual identification of high voltage, fully charged, charging, and low voltage conditions. The high- and low-voltage LEDs flash when abnormal electrical system conditions are detected, providing operators with an immediate visual warning.
A rugged watertight enclosure and watertight Deluxe connectors help protect the display and electrical connections in demanding vehicle installations. Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles, the Auto Charge Deluxe Watertight Status Center provides reliable remote charging system monitoring where increased environmental protection is required.
Features
• Remote digital monitoring display for compatible Kussmaul battery chargers
• Displays vehicle battery voltage and battery charger output current
• LED indicators provide quick visual identification of battery condition
• Displays high voltage, fully charged, charging, and low voltage conditions
• High- and low-voltage LEDs flash when abnormal electrical conditions are detected
• Rugged watertight enclosure for demanding vehicle installations
• Watertight Deluxe connectors help protect electrical connections
• Designed for exterior and environmentally exposed vehicle installations
• Compatible with select AC 1000 Series battery chargers
• Compatible with select AC 1200 Series battery chargers
• Compatible with select LPC Series battery chargers
• Charger model should be specified when ordering to ensure proper compatibility
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Watertight Remote Digital Battery Charger Status Display
• Monitored Functions: DC Battery Voltage, Charger Output Current, and Battery Condition
• Display Type: Digital Display with LED Battery Condition Indicators
• Input Voltage: 12 VDC from Battery
• DC Voltage Monitoring: Yes
• DC Amperage Monitoring: Yes
• High Voltage Indication: 14.82 VDC and Above
• Fully Charged Indication: 13.08 to 14.82 VDC
• Charging Indication: 12.84 to 13.08 VDC
• No LED Indication: 12.30 to 12.84 VDC
• Low Voltage Indication: 12.30 VDC and Below
• Enclosure: Rugged Watertight Construction
• Connector Type: Watertight Deluxe Connectors
• Compatible Charger Series: Kussmaul AC 1000 Series, AC 1200 Series, and LPC Series
• Weight: 0.25 lbs.
• Warranty: 3 Years
