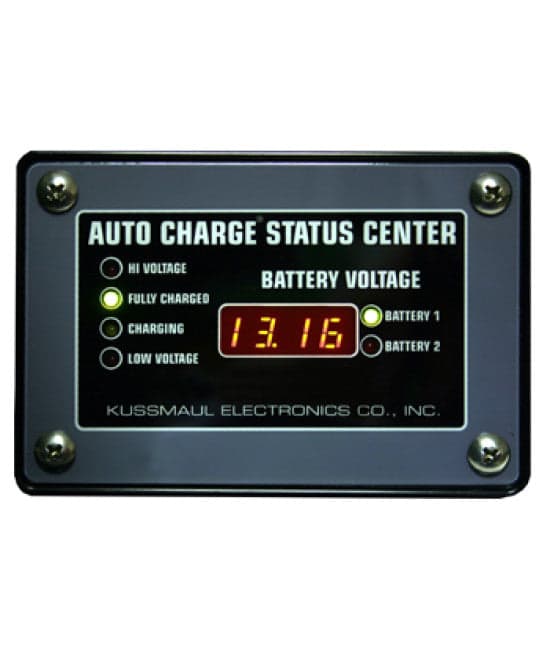

The Kussmaul Auto Charge Dual Status Center 3 1/2 Digit is a universal vehicle-mounted battery monitoring display designed for vehicles equipped with dual battery systems. The Status Center continuously monitors both batteries and automatically toggles between Battery 1 and Battery 2, providing operators with convenient voltage readings and visual battery condition information from a single display.
A 3 1/2-digit digital display shows the voltage of each battery with an accuracy of 30 millivolts, while dedicated LED indicators identify high voltage, fully charged, charging, and low voltage conditions. When a high- or low-voltage condition is detected, the corresponding LED flashes to alert personnel.
Designed for exterior vehicle mounting, the Status Center features a weatherproof enclosure and fits standard Kussmaul indicator panel cutouts. The unit operates directly from the vehicle's 12 VDC battery system and provides a compact monitoring solution for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles with dual battery systems.
Features
• Universal battery monitoring display for dual battery vehicle systems
• Continuously monitors Battery 1 and Battery 2
• Automatically toggles between both connected batteries
• 3 1/2-digit digital display shows individual battery voltage
• Voltage measurement accuracy of 30 millivolts
• LED indicators provide quick visual indication of battery condition
• Displays high voltage, fully charged, charging, and low voltage conditions
• LED flashes when a high- or low-voltage condition is detected
• Weatherproof enclosure for exterior vehicle mounting
• Fits standard Kussmaul indicator panel cutouts
• Operates directly from the vehicle's 12 VDC battery system
• Maximum current draw of 35 mA
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Dual Battery Digital Voltage and Status Display
• Battery Banks Monitored: 2
• Display Type: 3 1/2-Digit Digital Display with LED Status Indicators
• Input Voltage: 12 VDC from Battery
• Voltage Accuracy: 30 Millivolts
• Maximum Current Draw: 35 mA
• High Voltage Indication: 14.82 VDC and Above
• Fully Charged Indication: 13.08 to 14.82 VDC
• Charging Indication: 12.84 to 13.08 VDC
• No LED Indication: 12.30 to 12.84 VDC
• Low Voltage Indication: 12.30 VDC and Below
• Enclosure: Weatherproof
• Mounting Compatibility: Standard Kussmaul Indicator Panel Cutouts
• Weight: 0.25 lbs.
• Warranty: 3 Years
