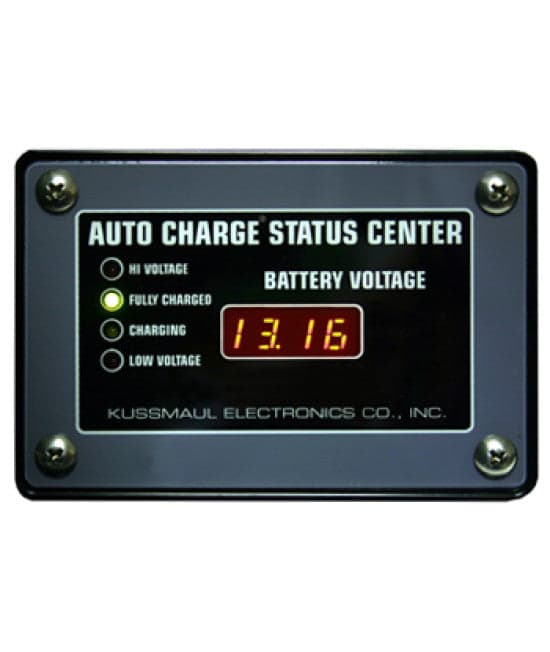

The Kussmaul Auto Charge Precision Status Center 3 1/2 Digit is a universal vehicle-mounted battery monitoring display designed for vehicles equipped with a single 12-volt battery system. The Status Center provides continuous battery voltage monitoring and uses a combination of a precision digital display and LED indicators to provide operators with clear battery condition information.
A 3 1/2-digit digital display shows battery voltage with an accuracy of 30 millivolts, while dedicated LED indicators identify high voltage, fully charged, charging, and low voltage conditions. The high- and low-voltage LEDs flash when the vehicle's electrical system reaches potentially abnormal voltage levels, providing an immediate visual warning to personnel.
Designed for exterior vehicle mounting, the Status Center features a weatherproof enclosure and fits standard Kussmaul indicator panel cutouts. With a low current draw of only 30 mA, the Auto Charge Precision Status Center provides convenient battery monitoring for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles.
Features
• Universal battery monitoring display for single-battery vehicle systems
• Continuously monitors vehicle battery voltage and condition
• 3 1/2-digit digital display provides precise battery voltage readings
• Voltage measurement accuracy of 30 millivolts
• LED indicators provide quick visual identification of battery condition
• Displays high voltage, fully charged, charging, and low voltage conditions
• High-voltage LED flashes when excessive battery voltage is detected
• Low-voltage LED flashes when insufficient battery voltage is detected
• Weatherproof enclosure for exterior vehicle mounting
• Fits standard Kussmaul indicator panel cutouts
• Operates directly from the vehicle's 12 VDC battery system
• Low current draw of only 30 mA
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Single-Battery Digital Voltage and Status Display
• Battery Banks Monitored: 1
• Display Type: 3 1/2-Digit Digital Display with LED Status Indicators
• Input Voltage: 12 VDC from Battery
• Voltage Accuracy: 30 Millivolts
• Current Draw: 30 mA
• High Voltage Indication: 14.82 VDC and Above
• Fully Charged Indication: 13.08 to 14.82 VDC
• Charging Indication: 12.84 to 13.08 VDC
• No LED Indication: 12.30 to 12.84 VDC
• Low Voltage Indication: 12.30 VDC and Below
• Enclosure: Weatherproof
• Mounting Compatibility: Standard Kussmaul Indicator Panel Cutouts
• Weight: 0.25 lbs.
• Warranty: 3 Years
