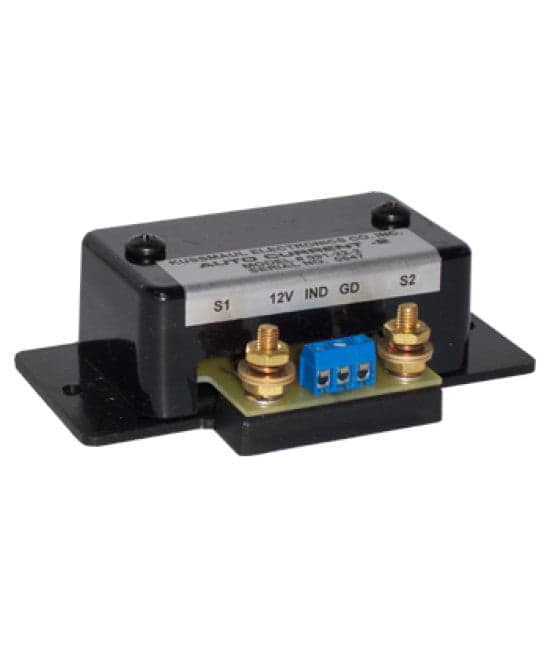

The Kussmaul Auto Current 2 is a current-sensing device designed to provide remote indication when one or more monitored electrical loads are operating. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, the Auto Current 2 simplifies warning and status circuits by allowing a single remote indicator to monitor multiple lights or other electrical loads.
The Auto Current 2 detects current flow from 1 to 30 amps and closes an internal switch to activate a connected remote indicator. Any one or multiple loads operating within the monitored circuit can activate the indicator, allowing a single status light to provide operating confirmation for multiple electrical devices. The indicator circuit may be electrically isolated from the monitored circuit or powered by the same vehicle battery, providing flexibility for different electrical system configurations. Optional -G configurations are available for applications requiring the indicator to be operated by grounding.
Features
• Automatically senses current flow in monitored electrical circuits
• Provides remote indication when a monitored electrical load is operating
• Senses current flow from 1 to 30 amps
• Allows a single indicator to monitor multiple lights or other electrical loads
• Any one or multiple energized loads can activate the connected indicator
• Helps simplify vehicle wiring and reduce the need for multiple status indicators
• Indicator circuit can be electrically isolated from the monitored circuit
• Indicator circuit may also be powered by the same vehicle battery
• Low-resistance sensing circuit minimizes impact on the monitored electrical system
• 5-amp switch rating provides dependable indicator circuit control
• Available in -G configurations for ground-operated indicator applications
• Operates on 12 VDC vehicle electrical systems
• Compact design simplifies installation in emergency and specialty vehicles
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Current-Sensing Control
• Model: Auto Current 2
• Input Voltage: 12 VDC
• Current Sensor: Yes
• Minimum Operating Current: 1 Amp
• Maximum Operating Current: 30 Amps
• Resistance: 0.01 Ohms
• Switch Rating: 5 Amps
• Output Function: Activates a Remote Indicator When Current Flow Is Detected
• Indicator Circuit Configuration: Electrically Isolated or Same-Battery Operation
• Multiple Load Monitoring: Yes
• Optional Configuration: -G Model for Ground-Operated Indicator Applications
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
