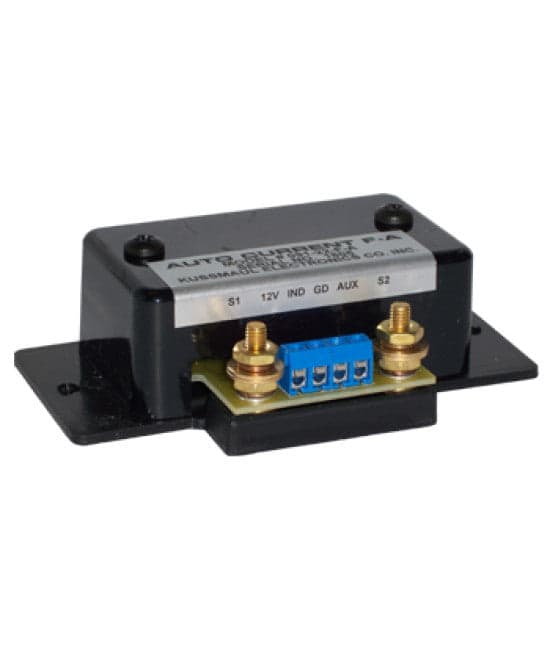

The Kussmaul Auto Current F-A-6 is a current-sensing and auxiliary-input control device designed to simplify warning indicator circuits in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems. By monitoring current flow to multiple electrical loads and providing a remote flashing output signal, the Auto Current F-A-6 allows a single indicator to warn operators when compartment lights or other monitored equipment are energized.
The Auto Current F-A-6 combines the current-sensing capabilities of the Auto Current F with an auxiliary ground-activated input. The sensing terminals are wired in series with the power supplied to the monitored compartment lights. When current flow is detected, the output relay operates and cycles ON and OFF to create a flashing signal for a remote indicator light. The auxiliary input can be connected to multiple switches wired in parallel, allowing any connected switch to activate the warning output independently of the current-sensing circuit. This combination makes the Auto Current F-A-6 ideal for DO NOT MOVE VEHICLE indicators, open compartment door warnings, and other vehicle safety applications.
Features
• Combines current sensing and auxiliary input activation in one compact device
• Senses current flow to monitored electrical loads
• Auxiliary input activates the output when connected to ground
• Auxiliary input can be connected to multiple switches wired in parallel
• Produces a flashing output signal for a remote warning indicator
• Allows a single indicator to monitor multiple electrical loads and switches
• Ideal for DO NOT MOVE VEHICLE warning systems and open compartment door detection
• Sensing terminals install in series with power supplied to monitored compartment lights
• Helps simplify vehicle wiring and reduce the need for multiple warning indicators
• Provides remote visual indication of monitored electrical conditions
• Available in grounding-output configurations where applicable
• Operates on 12 VDC vehicle electrical systems
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Current-Sensing and Auxiliary-Input Warning Control
• Model: Auto Current F-A-6
• Input Voltage: 12 VDC
• Auxiliary Input: Ground to Operate
• Output Operation: Flashing ON/OFF Signal to Remote Indicator
• Minimum Operating Current: 0.10 Amps
• Maximum Operating Current: 4 Amps
• Resistance: 0.2 Ohms
• Switch Rating: 5 Amps
• Current Sensing Installation: Series Connection with Power Supplied to Monitored Loads
• Multiple Switch Capability: Yes, Auxiliary Switches May Be Wired in Parallel
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
