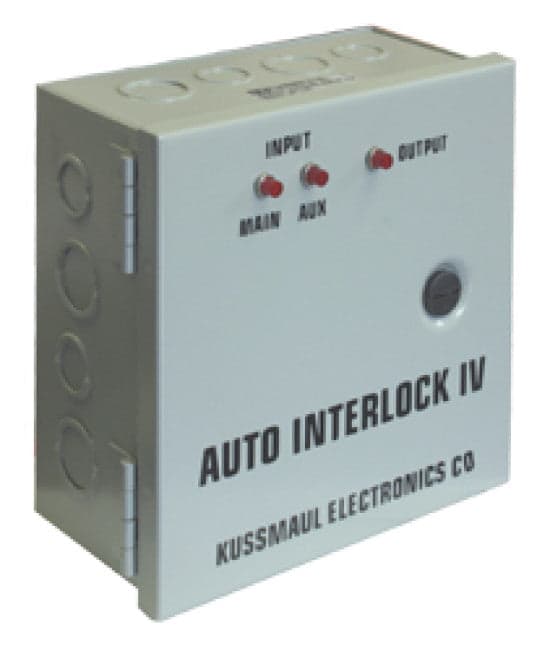

The Kussmaul Auto Interlock IV 120 V is an automatic 120 VAC power transfer system designed to transfer electrical loads between shoreline power and an auxiliary generator or inverter. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, the Auto Interlock IV provides automatic power source management without requiring operator intervention.
The Auto Interlock IV uses a heavy-duty 4-pole, double-throw power contactor rated for up to 50 amps. When the auxiliary generator is started, the system automatically detects the available power source and begins an adjustable time delay before transferring the connected load. This delay can be set from 2 seconds to 10 minutes, allowing generator output sufficient time to warm up and stabilize before electrical loads are transferred.
Indicator lights provide visual identification of the active power source being supplied to the connected load. When the generator is shut down or auxiliary power is no longer available, the Auto Interlock IV automatically returns the load to shoreline power. Its automatic operation, adjustable transfer delay, and straightforward installation make it a dependable solution for managing multiple AC power sources in emergency and specialty vehicles.
Features
• Automatically transfers electrical loads between shoreline power and generator or inverter power
• Designed for 120 VAC electrical systems
• 50-amp maximum current capacity for demanding vehicle electrical applications
• Heavy-duty 4-pole, double-throw power contactor
• Automatically transfers the load when auxiliary generator power becomes available
• Adjustable transfer delay allows generator output to warm up and stabilize before accepting the load
• Transfer time delay adjustable from 2 seconds to 10 minutes
• Automatically returns connected loads to shoreline power when generator power is shut down
• Indicator lights identify the active power source supplying the connected load
• Fully automatic operation requires no routine operator intervention
• Helps provide reliable power source management for onboard AC electrical equipment
• Easy installation simplifies integration into vehicle electrical systems
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle applications
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic AC Power Transfer System
• Model: Auto Interlock IV 120 V
• Operating Voltage: 120 VAC
• Maximum Current Capacity: 50 Amps
• Current Configuration: 4-Pole, Double-Throw
• Power Contactor Rating: 50 Amps
• Transfer Sources: Shoreline Power and Auxiliary Generator or Inverter Power
• Transfer Time Delay: Adjustable from 2 Seconds to 10 Minutes
• Active Power Source Indicators: Yes
• Automatic Load Transfer: Yes
• Automatic Return to Shoreline Power: Yes
• Operator Intervention Required: No
• Weight: 5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
