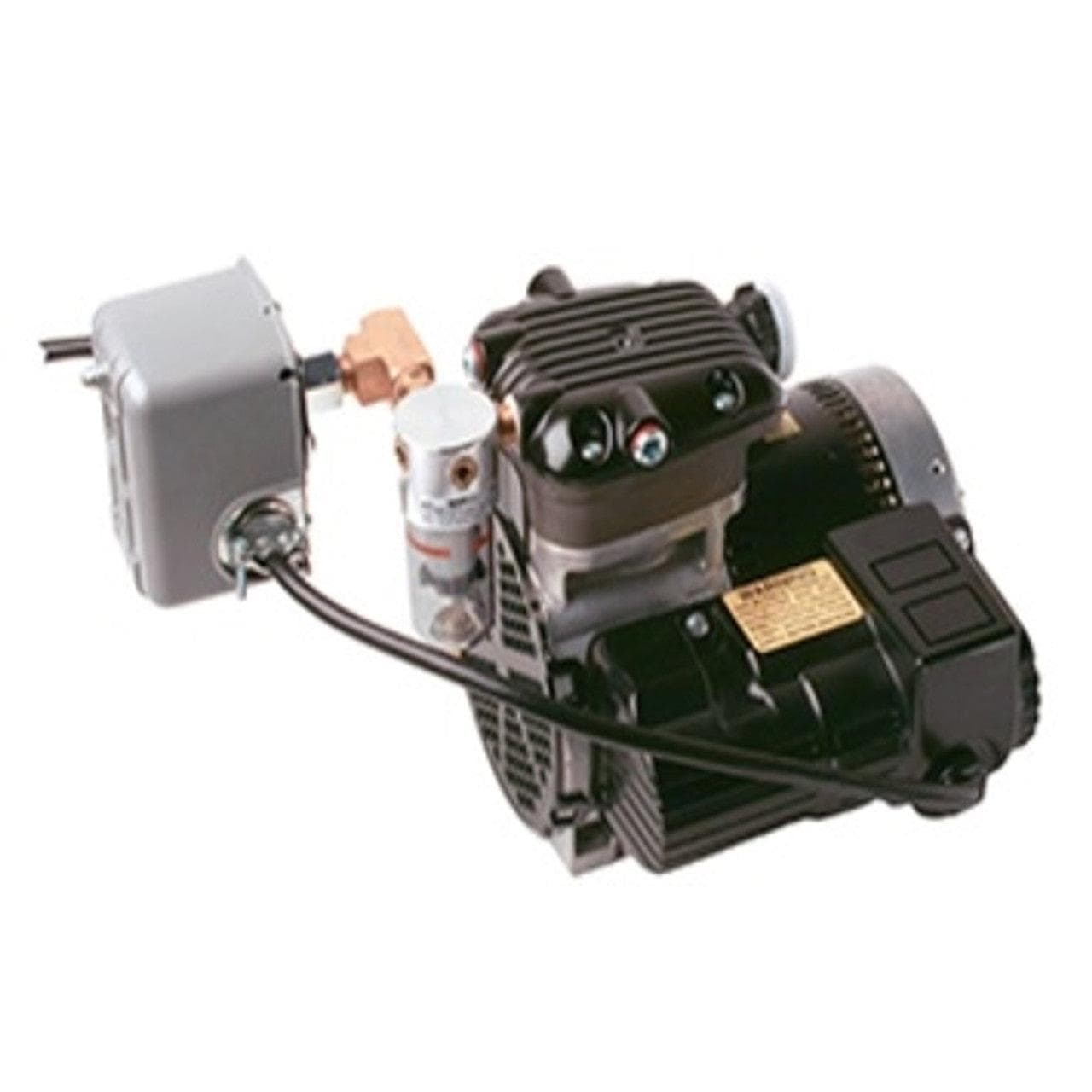

The Kussmaul Auto Pump AC is a vehicle-mounted air compressor designed to maintain proper air brake system pressure while fire apparatus, rescue vehicles, and other air-brake-equipped vehicles are parked in the station. Operating from 120V AC power, the Auto Pump AC automatically monitors system pressure and restores lost air pressure caused by normal system seepage, helping keep vehicles ready for immediate departure and preventing air brake lockup due to low pressure.
A heavy-duty pressure switch automatically starts the compressor when system pressure drops to approximately 75 PSI and stops operation when pressure reaches approximately 95 PSI. The startup pressure is field adjustable with a fixed 20 PSI differential between cut-in and cut-out pressures. The directly coupled motor and compressor design eliminates belts and pulleys, while sealed ball bearings provide dependable operation and extended service life. An included moisture trap allows accumulated moisture to be routinely drained from the compressor output line.
Features
• Vehicle-mounted air compressor designed for vehicles equipped with air brake systems
• Automatically maintains air system pressure during extended periods of vehicle inactivity
• Helps keep emergency vehicles properly pressurized and ready for immediate departure
• Pressure switch automatically starts the compressor when air pressure drops below the preset level
• Factory-set pressure switch operates at approximately 75 PSI cut-in and 95 PSI cut-out
• Field-adjustable startup pressure with a fixed 20 PSI pressure differential
• 100 PSI maximum pressure rating
• Direct-coupled motor and compressor design eliminates belts and pulleys
• Operates independently without interfering with the vehicle's engine-mounted air compressor
• Sealed ball bearings provide dependable operation and long service life
• Included moisture trap allows routine draining of accumulated moisture
• Compact design for installation on emergency and specialty vehicles
• Replaces Kussmaul part numbers 091-9B-1 and 091-9B-4
• 2-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Vehicle-Mounted Air Compressor
• Application: Air Brake System Pressure Maintenance
• Input Voltage: 120V AC
• Input Frequency: 50/60 Hz
• Input Current: 1.8 Amps
• Motor Horsepower: 1/8 HP
• Motor Type: Shaded Pole AC
• Compressor Type: Single Cylinder
• Maximum Pressure: 100 PSI
• Factory Cut-In Pressure: 75 PSI
• Factory Cut-Out Pressure: 95 PSI
• Pressure Differential: 20 PSI
• Output: 1.0/1.3 CFM Open Flow
• Outlet Connection: 1/4" Female NPT
• Mounting Orientation: Horizontal
• Weight: 15 lbs.
• Warranty: 2 Years
