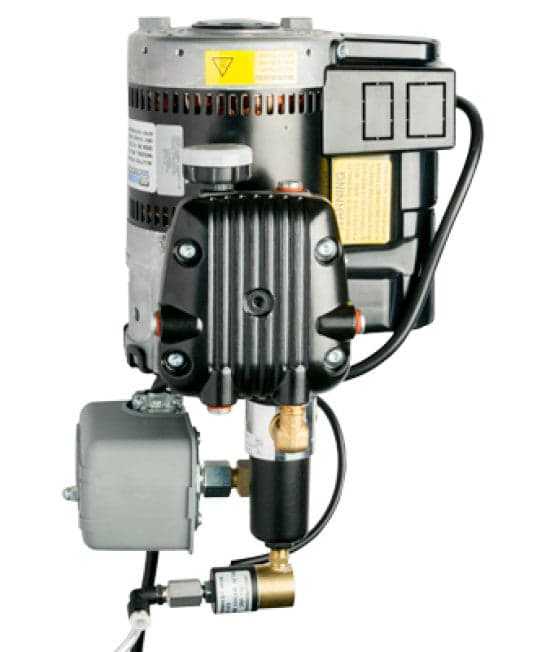

The Kussmaul Auto Pump AC AD is a 120 VAC vehicle-mounted air compressor with an integrated automatic drain system designed to maintain air brake system pressure while fire apparatus, rescue vehicles, and other heavy-duty vehicles are parked. By automatically restoring lost air pressure, the Auto Pump AC AD helps keep the vehicle ready for immediate departure and reduces delays caused by low air brake system pressure.
A heavy-duty pressure switch automatically starts the compressor when system pressure drops to 75 PSI and shuts the compressor off when pressure reaches 95 PSI. The compressor operates independently of the vehicle's engine-mounted air compressor and uses a directly coupled motor and compressor design that eliminates belts and pulleys for reliable operation and reduced maintenance requirements.
The integrated Auto Drain system uses a normally open solenoid valve to automatically purge moisture from the water separator bowl each time the compressor shuts down. This helps keep the filter bowl drained without requiring routine intervention from maintenance personnel. The compact vertical-mount compressor features sealed ball bearings, a shaded-pole AC motor, and a maximum pressure rating of 100 PSI.
Part number 091-9B-4-AD replaces the previous 091-9B-1-AD model.
Features
• Vehicle-mounted air compressor maintains air brake system pressure while the vehicle is parked
• Helps keep fire apparatus and emergency vehicles ready for immediate departure
• Integrated Auto Drain automatically purges moisture from the water separator bowl
• Normally open solenoid valve drains accumulated moisture each time the compressor shuts down
• Automatic drain operation reduces routine maintenance requirements
• Pressure switch automatically senses low air pressure and activates the compressor
• Factory-set pressure switch turns the compressor ON at 75 PSI and OFF at 95 PSI
• 20 PSI fixed pressure differential with field-adjustable cut-in pressure
• Maximum pressure rating of 100 PSI
• Operates independently without interfering with the vehicle's engine-mounted air compressor
• Direct-drive design eliminates belts and pulleys
• Sealed ball bearings provide long service life
• Compact vertical-mount design supports vehicle installation
• 1/4" NPT female outlet connection
• 120 VAC shaded-pole motor
• Part number 091-9B-4-AD replaces previous part number 091-9B-1-AD
• Backed by a 2-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Vehicle-Mounted Air Compressor with Automatic Drain
• Model: Auto Pump AC AD
• Current Part Number: 091-9B-4-AD
• Previous Part Number: 091-9B-1-AD
• Input Voltage: 120 VAC, 50/60 Hz
• Maximum Input Current: 1.8 Amps
• Motor Horsepower: 1/8 HP
• Motor Type: Shaded-Pole AC
• Maximum Pressure: 100 PSI
• Factory-Set Cut-In Pressure: 75 PSI
• Factory-Set Cut-Out Pressure: 95 PSI
• Pressure Differential: 20 PSI, Fixed
• Pressure Switch: Field-Adjustable Cut-In Set Point
• Output: 1.0/1.3 CFM Open Flow
• Outlet Connection: 1/4" NPT Female
• Auto Drain: Included
• Mounting Orientation: Vertical
• Weight: 16 lbs.
• Warranty: 2-Year Manufacturer's Warranty
