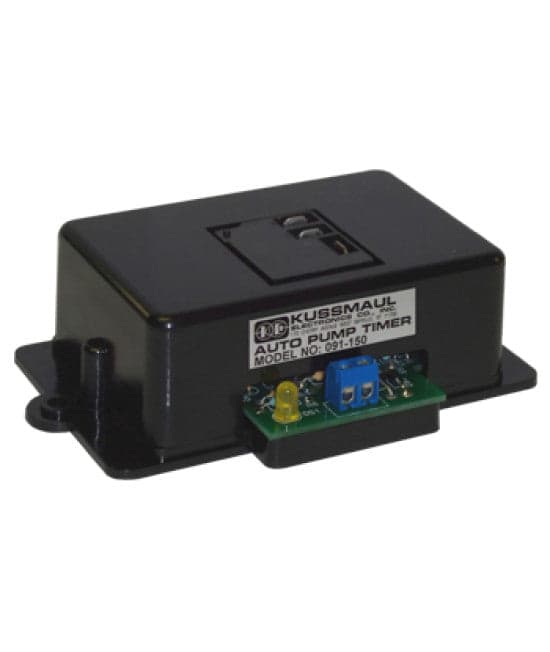

The Kussmaul Auto Pump Timer is an automatic duty-cycle controller designed to help protect compatible 12V Auto Pump air compressors from overheating and excessive wear caused by continuous operation. Designed for fire apparatus, rescue vehicles, and other emergency or specialty vehicles, the timer provides additional protection when excessive air system leakage or a system malfunction causes the Auto Pump to run continuously.
During normal operation, the Auto Pump pressure switch automatically starts the compressor when system pressure drops and shuts it off when proper pressure is restored. If an air system failure causes continuous compressor operation, the Auto Pump Timer limits the compressor run time to one hour and then provides a one-hour cool-down period before allowing operation to resume. The timer operates automatically without interfering with the normal function of the compressor or its pressure switch.
Features
• Automatic duty-cycle controller for compatible 12V Auto Pump air compressors
• Helps protect the compressor from overheating caused by continuous operation
• Limits continuous compressor operation to one hour
• Provides a one-hour cool-down period between operating cycles
• Helps reduce excessive compressor wear and extend pump service life
• Protects against continuous operation caused by excessive air system leakage or system failures
• Does not interfere with normal Auto Pump pressure switch operation
• Completely automatic operation requires no operator intervention
• 30-amp relay contacts
• Easy installation
• Designed for fire apparatus, rescue vehicles, and other emergency or specialty vehicle applications
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Auto Pump Duty-Cycle Timer
• Compatible Equipment: 12V Auto Pump Air Compressors
• Operating Cycle: 1 Hour ON / 1 Hour OFF
• Pump Running Current: 0.080 Amps
• Pump Off Current: 0.010 Amps
• Relay Contact Rating: 30 Amps
• Input Voltage: 12 VDC
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
