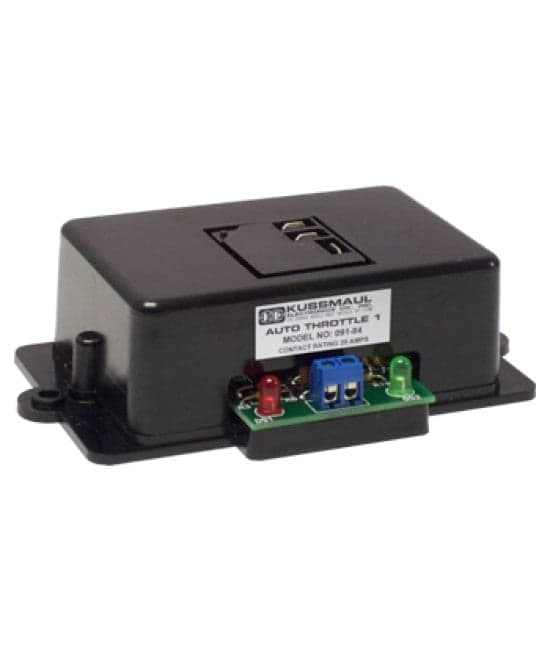

The Kussmaul Auto Throttle 1 is an automatic high-idle controller designed to increase engine speed whenever battery voltage drops due to insufficient alternator output. Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and other emergency response vehicles, the Auto Throttle 1 helps maintain adequate charging voltage while operating emergency lighting, radios, warning equipment, and other high-current electrical accessories.
The Auto Throttle 1 continuously monitors battery voltage and activates a relay when system voltage falls below the adjustable 12.5 VDC set point for at least 15 seconds. Once activated, the unit commands the engine to high idle through an external throttle actuator or electronic engine control and maintains high idle for a minimum of 5 minutes, or until system voltage rises above 13.4 VDC, whichever occurs later. This built-in timing prevents unnecessary cycling caused by temporary voltage fluctuations and helps maximize alternator output. The Auto Throttle 1 provides the control signal only; the throttle actuator or engine control interface is supplied by the installer.
Features
• Automatically increases engine idle speed when battery voltage drops
• Helps maintain charging voltage for emergency vehicle electrical systems
• Compatible with virtually any throttle actuator or electronic engine control system
• 15-second activation delay prevents nuisance operation from brief voltage drops
• Maintains high idle for a minimum of 5 minutes to reduce cycling
• Field-adjustable voltage set point for customized operation
• Red LED indicates high-idle output is active
• Green LED indicates normal system voltage and output off
• Simple installation for fire apparatus, ambulances, rescue vehicles, and specialty vehicles
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic High Idle Controller
• Input Voltage: 12 VDC
• Maximum Input Current: 1 Amp
• Activation Delay ("ON"): 15 Seconds
• Deactivation Delay ("OFF"): 5 Minutes Minimum
• Activation Voltage: 12.5 VDC (Field Adjustable)
• Deactivation Voltage: 13.4 VDC
• Relay Contacts: Normally Open – 30 Amps; Normally Closed – 20 Amps
• Indicators: Red LED (Output ON / Low Voltage), Green LED (Output OFF / Normal Voltage)
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
