Description

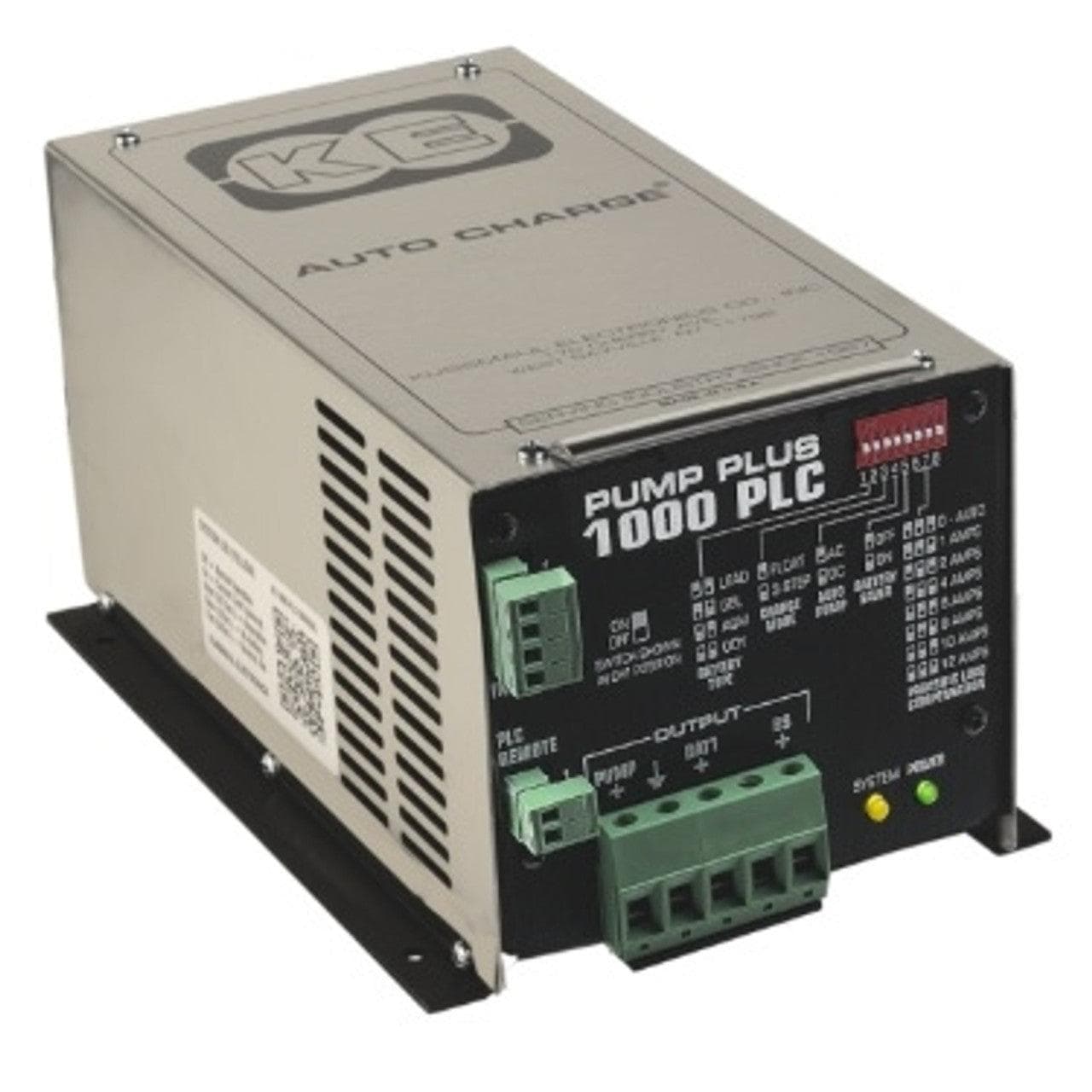

The Kussmaul Auto Charge 1000 PP PLC is a microprocessor-controlled Pump Plus battery charging system with Parasitic Load Compensation (PLC), a built-in 3-amp Battery Saver, Auto Pump control capability, and an included remote bar graph display. Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles, the system is available in configurations for either a single or dual 12-volt battery bank.
Parasitic Load Compensation is designed for emergency vehicles that operate continuous accessory loads such as flashlights, gas detectors, computers, radios, and monitoring equipment. The system allows the vehicle's total parasitic load current to be entered into the charger so the absorption-stage transition point can be adjusted accordingly. This allows the batteries to transition properly to float voltage without continuous accessory loads causing extended charging cycles, helping prevent overcharging, overheating, and premature battery wear.
The built-in 3-amp Battery Saver automatically transfers compatible accessory loads from the vehicle battery to the Battery Saver power supply when AC shore power is connected. This allows the charger to replenish the batteries without simultaneously supplying the connected accessory loads.
An integrated pump output provides control capability for a compatible Kussmaul Auto Pump 12V. An AC/DC mode DIP switch allows the installer to determine when the compressor operates. In DC mode, the compressor can operate whenever low air system pressure is detected, including when the vehicle is disconnected from shore power. In AC mode, compressor operation is limited to periods when AC shore power is available.
Available configurations include the single-battery Pump Plus 1000 PLC and the dual-battery Pump Plus 2000 PLC. Both configurations provide 15 amps of battery charging output, a 3-amp Battery Saver, electronic battery voltage sensing without separate sense wires, selectable battery types, configurable Float or 3-Step charging, and an included remote bar graph display.
Features
• Pump Plus battery charger available for single or dual 12-volt battery bank systems
• 18 amps of total output capacity with a 15-amp battery charger and 3-amp Battery Saver
• Microprocessor-controlled automatic charging operation
• Parasitic Load Compensation designed for emergency vehicles with continuous accessory loads
• Allows user input of total accessory load current to properly compensate the charging cycle
• Helps prevent overcharging, overheating, and premature battery wear
• Electronic sensing monitors true battery voltage without requiring separate sense wires
• Built-in 3-amp Battery Saver output
• Battery Saver transfers compatible accessory loads away from the vehicle battery when AC power is applied
• Pump output for controlling a compatible Kussmaul Auto Pump 12V
• AC/DC mode DIP switch provides selectable compressor operating control
• DC mode allows compressor operation whenever low air pressure is detected
• AC mode limits compressor operation to periods when AC shore power is connected
• Supports Lead-Acid, Gelled Electrolyte, AGM, and Odyssey battery types
• Configurable for Float or 3-Step charging
• 3-hour safety timer when operating in 3-Step charging mode
• Remote bar graph display included
• Green LED indicates when 120V AC input power is applied
• Yellow system status LED provides charger operating information
• Rugged construction designed to withstand shock and vibration encountered in vehicle-mounted applications
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Available Configurations
• Single Battery Auto Charge 1000 PLC – Part Number 091-215-12-PP
• Designed for a single 12-volt battery bank
• Single-channel automatic battery charging operation
• Single Bar Graph Remote Display included
• Compatible with Super Auto Eject Deluxe Cover 091-55-234-XXX with Bar Graph Display
• Compatible with Super Auto Eject Deluxe Cover 091-55-194B-XXX with Digital Display
• Dual Battery Auto Charge 2000 PLC – Part Number 091-237-12-PP
• Designed for dual 12-volt battery banks
• Dual-channel automatic battery charging operation
• Automatic current limiting and proportioning between battery banks
• Dual Bar Graph Remote Display included
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Pump Plus Automatic Battery Charger with PLC, Battery Saver, and Pump Control
• Available Battery Bank Configurations: Single or Dual
• Battery Charger Output Voltage: 12 VDC
• Battery Charger Output Current: 15 Amps
• Total Output Capacity: 18 Amps
• Battery Saver Output: 13 VDC, 3 Amps
• Maximum Battery Charging Output with Battery Saver Off: 18 Amps for 091-215-12-PP
• Input Voltage: 120 VAC
• Input Frequency: 60 Hz
• Maximum Input Current: 3.5 Amps
• Input Fuse: 6 Amps, Fast Blow
• Charging Modes: Float or 3-Step
• 3-Step Safety Timer: 3 Hours
• Supported Battery Types: Lead-Acid, Gelled Electrolyte, AGM, and Odyssey
• Parasitic Load Compensation: Yes
• Voltage Sensing: Electronic; Separate Sense Lines Not Required
• Battery Saver: Yes, 3 Amps
• Pump Control Output: Yes
• Pump Operating Modes: AC or DC Selectable by DIP Switch
• Remote Display Included: Yes
• Single-Battery Remote Display: Single Bar Graph Display
• Dual-Battery Remote Display: Dual Bar Graph Display
• Single-Battery Output Fuse: 40 Amps, Part Number 090-0040-0
• Dual-Battery Output Fuses: Two 40-Amp Fuses, Part Number 090-0040-0
• DC Output Connector Torque: 15 in-lbs.
• Weight: 11 lbs.
• Warranty: 3 Years
