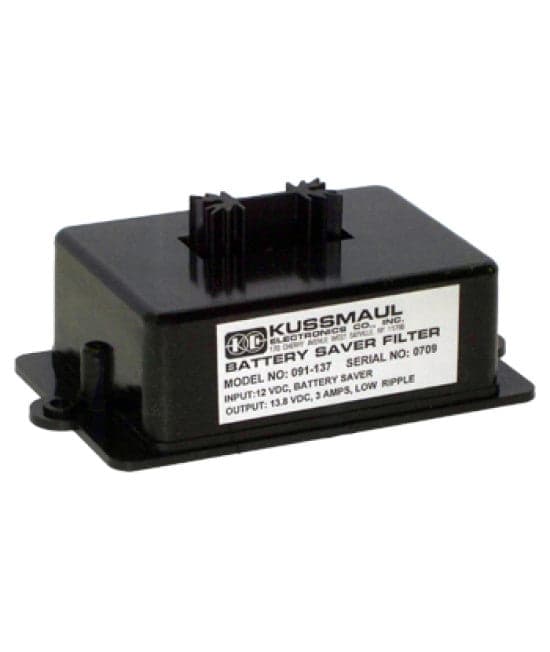

The Kussmaul Battery Saver Filter is a compact switching power converter designed to provide clean, filtered, and regulated DC power to sensitive electronic equipment in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems. Delivering up to 3 amps of regulated output current, the Battery Saver Filter helps reduce electrical noise and voltage fluctuations that can interfere with sensitive onboard electronics.
The Battery Saver Filter converts input power from a 12 to 15 VDC battery source or 12 VDC Battery Saver into a regulated 13.8 VDC output. Its low-ripple output provides stable power with a maximum ripple of only 15 millivolts RMS, helping ensure noise-free operation of sensitive electronic devices. Integrated short-circuit protection helps protect the converter and connected equipment from damaging overloads or accidental output shorts to ground.
Designed for demanding emergency vehicle electrical systems, the Battery Saver Filter is especially useful for powering sensitive electronic equipment and certain flashlight chargers connected to the rectified DC output supplied by a Battery Saver.
Features
• Provides clean, filtered, and regulated DC power for sensitive electronic equipment
• Delivers up to 3 amps of total output current
• Regulated 13.8 VDC output provides stable power to connected equipment
• Low-ripple output helps minimize electrical noise and interference
• Maximum output ripple of 15 millivolts RMS
• Helps protect sensitive electronics from unstable or noisy DC power sources
• Integrated short-circuit protection helps prevent damage from overloads and output shorts to ground
• Designed for use with 12 to 15 VDC battery sources and 12 VDC Battery Saver systems
• Especially useful for powering certain flashlight chargers connected to Battery Saver systems
• Compact switching power converter design simplifies vehicle installation
• Engineered for the demanding operating conditions of emergency and specialty vehicles
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Filtered and Regulated DC Power Converter
• Model: Battery Saver Filter
• Input: 12 to 15 VDC Battery or 12 VDC Battery Saver
• Output Voltage: 13.8 ± 0.1 VDC
• Maximum Output Current: 3 Amps
• Battery Saver Amperage Rating: 3 Amps
• Maximum Output Ripple: 15 Millivolts RMS
• Voltage Regulation: Yes
• Short-Circuit Protection: Yes
• Application: Powering Sensitive Electronic Equipment and Compatible Flashlight Chargers
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
