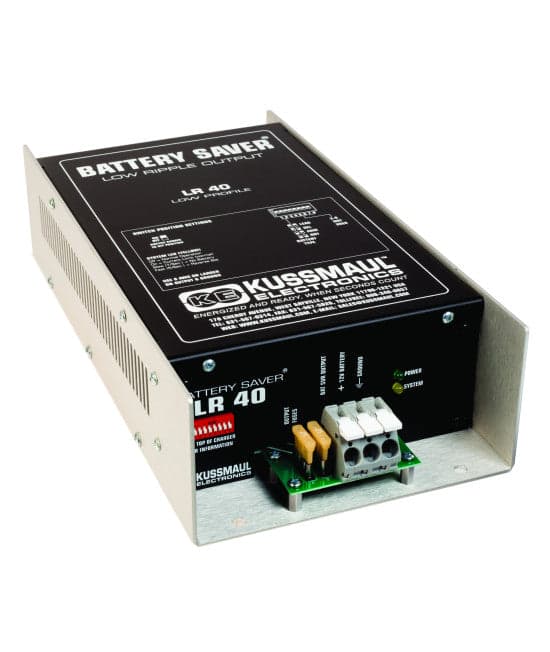

The Kussmaul Battery Saver Low Ripple VHO is a heavy-duty 40-amp power supply with an integrated load power transfer function designed to prevent auxiliary electronic equipment from discharging the vehicle battery while connected to 120 VAC shore power. Engineered for emergency and specialty vehicles, the Battery Saver provides clean, regulated, low-ripple DC power for sensitive electronics such as mobile data terminals (MDTs), vehicle computers, communications equipment, and other onboard electrical loads.
When AC power is unavailable, connected equipment operates from the vehicle battery. When 120 VAC shore power is applied, solid-state circuitry automatically transfers the connected loads to the Battery Saver output. The system is designed to maintain continuous power during transfers, helping prevent sensitive electronic equipment and vehicle computers from rebooting due to momentary power interruptions.
The Battery Saver Low Ripple VHO provides a 40-amp total output, regulated output voltage, and user-selectable output voltage settings for flexible vehicle electrical system integration. A green LED provides visual confirmation when 120 VAC input power is present, while the heavy-duty enclosure and components are designed for demanding emergency vehicle installations.
Features
• Heavy-duty 40-amp power supply with automatic load power transfer function
• Prevents auxiliary electrical loads from discharging the vehicle battery while connected to shore power
• Connected loads operate from the vehicle battery when AC input power is unavailable
• Solid-state circuitry automatically transfers connected loads to the Battery Saver output when shore power is applied
• Maintains continuous power to connected equipment during power transfers
• Helps prevent mobile data terminals and vehicle computers from rebooting during power source transitions
• Provides clean, low-ripple DC output for sensitive electronic equipment
• Output ripple of 30 millivolts helps minimize electrical interference
• Regulated output voltage for dependable equipment operation
• User-selectable output voltage settings for flexible system configuration
• Fast power transfer helps provide glitch-free operation of connected equipment
• Green LED indicates when 120 VAC input power is applied
• 40-amp fast-acting output fuse provides circuit protection
• Heavy-duty enclosure and components designed for demanding emergency vehicle applications
• Ideal for mobile data terminals, vehicle computers, communications equipment, and other sensitive onboard electronics
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Low-Ripple DC Power Supply with Automatic Load Transfer
• Battery Saver Output Current: 40 Amps
• AC Input: 120 VAC, 50/60 Hz, 5 Amps
• Input Fuse: 5 Amps
• Output: Regulated DC Voltage, Nominal
• Output Voltage Settings: User Selectable
• Output Ripple: 30 Millivolts
• Output Fuse: 40 Amp, Fast-Acting Autofuse
• Load Transfer: Automatic Solid-State Power Transfer
• Power Transfer Operation: Continuous Power Without Load Interruption
• Input Power Indicator: Green LED Indicates 120 VAC Power Applied
• Weight: 7 lbs.
• Warranty: 3 Years
