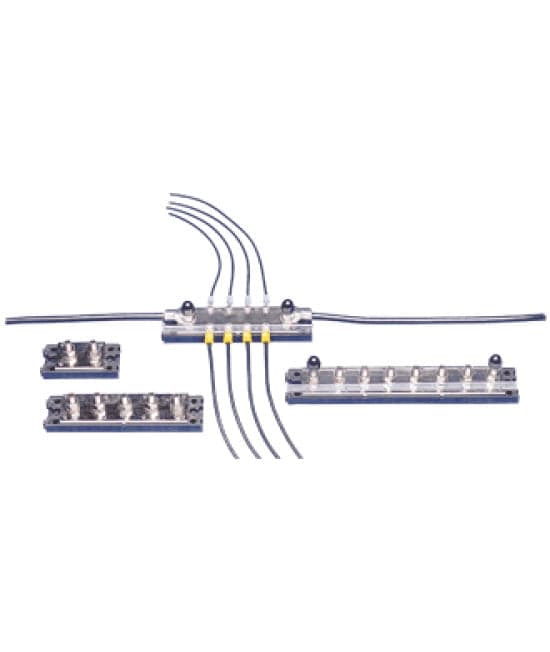

The Kussmaul BB-8 Bus Bar provides a heavy-duty electrical distribution solution for high-amperage DC systems in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicles. Designed for use as either a DC ground tie point or positive distribution bus, the BB-8 provides a centralized connection point for large-gauge wiring while helping installers create secure, organized, and professional electrical systems.
Constructed from a 1/4-inch thick nickel-plated copper bus bar, the BB-8 features eight 5/16-inch studs positioned on 1-inch centers to accommodate 5/16-inch ring terminals and high-current electrical connections. The bus bar is rated for 500 amps and includes a clear insulating protective cover that helps prevent accidental short circuits while maintaining visibility of wiring connections. Keyed mounting bases allow multiple bus bars to interlock and connect with compatible terminal strips for expandable electrical distribution systems.
Features
• Ideal for use as a DC ground tie point or positive electrical distribution bus
• Heavy-duty 500-amp rating for high-current electrical systems
• Eight 5/16" studs accommodate large-gauge wiring and ring terminals
• Studs positioned on 1" centers for organized cable routing and connections
• 1/4" thick copper bus bar provides dependable high-current conductivity
• Nickel-plated copper construction provides corrosion resistance and long-term durability
• Clear insulating protective cover helps prevent accidental short circuits
• Transparent cover maintains visibility of wiring connections and ring terminals
• Keyed mounting bases allow interlocking with additional bus bars and compatible terminal strips
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicles
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Heavy-Duty DC Bus Bar
• Model: BB-8
• Number of Studs: 8
• Stud Size: 5/16"
• Stud Spacing: 1" Centers
• Current Rating: 500 Amps
• Bus Bar Thickness: 1/4"
• Bus Material: Nickel-Plated Copper
• Protective Cover: Clear Insulating Cover
• Dimensions: 9.0625" × 1.5"
• Weight: 0.2 lbs.
• Junction: Yes
