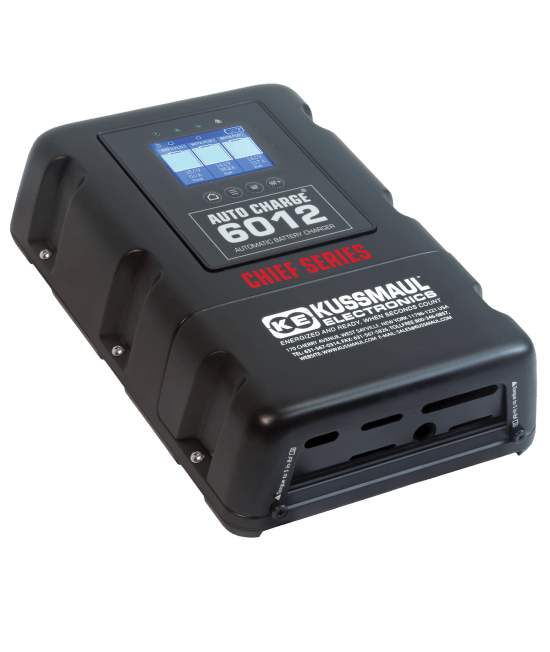

The Kussmaul Chief Series Smart Charger 6012 is a high-power, intelligent battery charger designed to charge and maintain up to three vehicle battery banks in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. Delivering up to 60 amps of charging output, the Chief Series 6012 combines advanced battery charging technology, an integrated touchscreen display, CAN Bus connectivity, Parasitic Load Compensation, and Pump Plus functionality in a compact, low-profile package.
Dual Battery Type Technology allows the charger to simultaneously charge battery banks with two different battery chemistries. The system supports Flooded Lead-Acid, Gelled Electrolyte, AGM, Odyssey®, Lithium Iron Phosphate (LFP), and custom battery charging configurations. Selectable Float and 3-Step charging profiles provide additional flexibility for different vehicle electrical systems and battery requirements.
Parasitic Load Compensation allows the installer to enter the vehicle's total accessory load current so the charger can adjust the absorption-stage transition point. This helps the batteries properly transition to float voltage despite continuous electrical loads from onboard equipment, reducing the potential for overcharging caused by parasitic loads.
A built-in touchscreen LCD provides convenient access to battery charging information, system settings, and charger status. CAN Bus connectivity supports integration with compatible vehicle communication systems, while an optional remote touchscreen control panel and compatible Super Auto Eject Deluxe Cover provide additional monitoring options.
The integrated Pump Plus feature supports compatible vehicle air compressor applications, while rotating mounting feet simplify installation in space-constrained compartments. An IP32-rated enclosure provides increased protection against environmental contaminants, making the Chief Series Smart Charger 6012 well suited for demanding vehicle-mounted applications.
Features
• High-power smart battery charger for up to three vehicle battery banks
• 60-amp charging output capacity
• Triple battery bank charging configuration

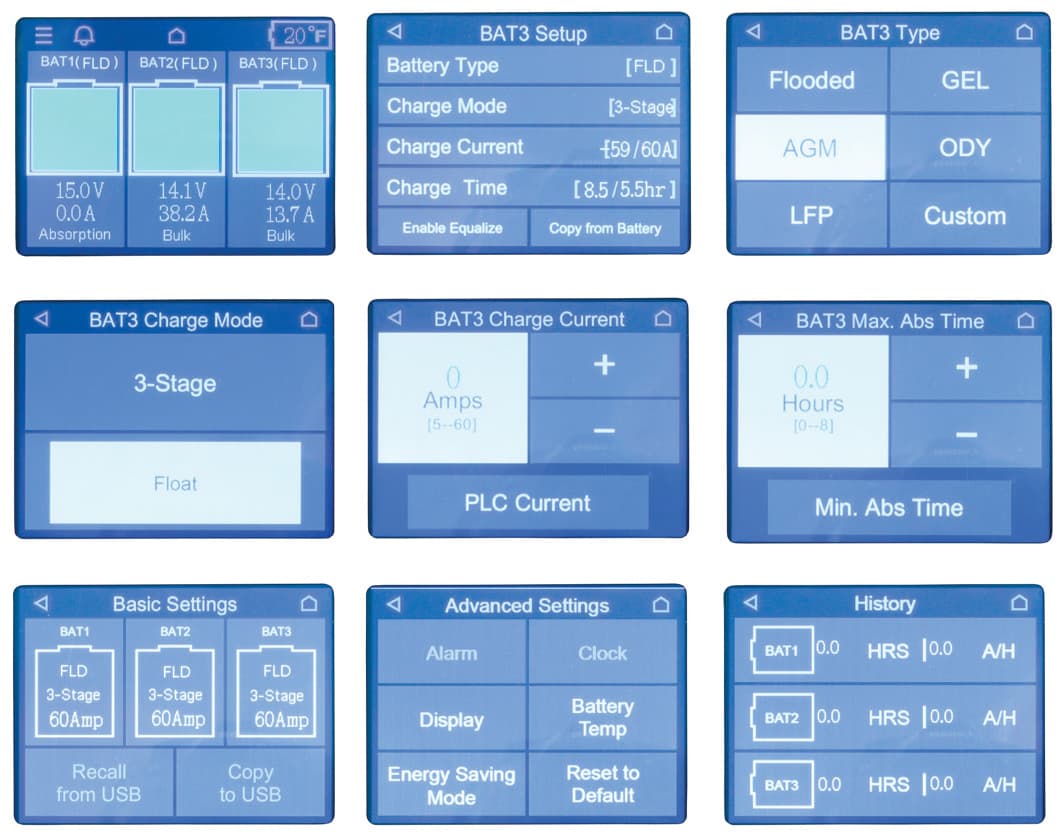

• Built-in touchscreen LCD display provides battery charge level, charger status, and system information
• Dual Battery Type Technology allows simultaneous charging of two different battery chemistries
• Supports Flooded Lead-Acid, Gelled Electrolyte, AGM, Odyssey®, and Lithium Iron Phosphate (LFP) batteries
• Supports custom battery charging configurations
• Selectable Float and 3-Step charging profiles
• Parasitic Load Compensation helps prevent continuous accessory loads from interfering with proper charging operation
• Allows user input of total vehicle accessory load current
• Automatically adjusts the absorption-stage transition point based on programmed parasitic loads
• CAN Bus enabled connectivity for integration with compatible vehicle communication systems
• Integrated Pump Plus functionality
• IP32-rated enclosure provides increased ingress protection
• Electronic voltage sensing eliminates the need for separate battery sense lines
• Built-in power indicator shows when AC input power is applied
• Optional Remote Control Panel 091-266-RCP available
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-266-XXX
• Rotating mounting feet provide flexible installation options
• Compact, lightweight, low-profile design for space-constrained vehicle compartments
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 5-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: High-Power Smart Vehicle Battery Charger
• Charger Series: Chief Series
• Charger Configuration: Triple Battery Bank
• Maximum Number of Battery Banks: 3
• Output Current: 60 Amps
• AC Input Voltage Range: 80 to 255 VAC
• Nominal AC Input Voltage: 120/240 VAC
• Input Frequency: 45 to 65 Hz
• Maximum Input Current: 9.8 Amps
• Input Fuse: 10A Slow-Blow
• Output Fuse: 80 Amps
• Output Fuse Part Number: 090-0080-0
• Charging Profiles: Float and 3-Step
• Supported Battery Types: Flooded Lead-Acid, Gelled Electrolyte, AGM, Odyssey®, Lithium Iron Phosphate (LFP), and Custom Configurations
• Dual Battery Type Technology: Yes
• Parasitic Load Compensation: Yes
• Pump Plus: Yes
• CAN Bus Connectivity: Yes
• Voltage Sensing: Electronic; Separate Sense Lines Not Required
• Built-In Display: Touchscreen LCD
• Charge Indicator: Built-In LCD Display Indicates Battery Charge Level
• Remote Display Included: No
• Optional Remote Display: Remote Control Panel 091-266-RCP
• Compatible Super Auto Eject Deluxe Cover: 091-55-266-XXX
• Ingress Protection Rating: IP32
• Low-Profile Design: Yes
• Mounting: Rotating Mounting Feet
• Weight: 7.9 lbs.
• Warranty: 5 Years
