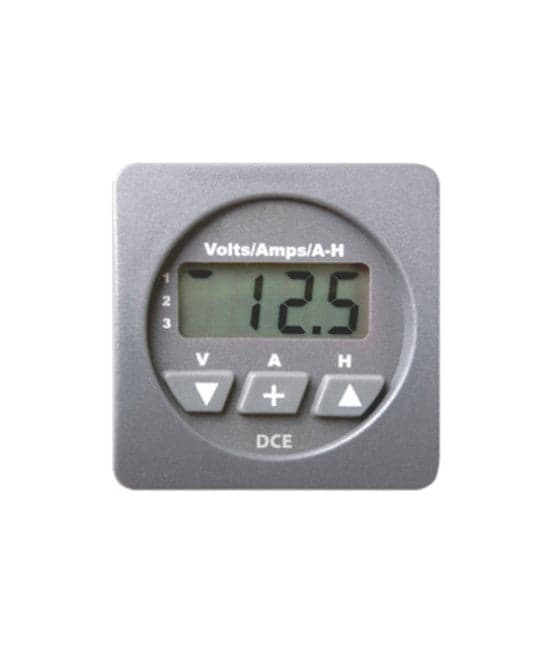

The Kussmaul DC Energy Display is a watertight digital battery monitoring instrument designed to provide comprehensive voltage, current, and energy monitoring for up to three battery banks. Compatible with 12-volt and 24-volt electrical systems, the DCE monitors battery voltage from 9.5 to 33.0 VDC and provides detailed charge and discharge information for the primary house battery bank.
The DCE continuously tracks current entering and leaving the house battery bank and applies Peukert's and efficiency factors to provide accurate energy usage and remaining capacity information. Operators can monitor charge and discharge amperage, amp-hours, and percent of charge for battery systems with capacities up to 3,000 amp-hours.
Programmable high- and low-voltage alarms and a low amp-hours remaining alarm provide notification of critical battery conditions. When an alarm is activated, the built-in 85 dB audible alarm sounds and the digital display flashes. The DCE can output NMEA 0183 serial data, or the data line can be configured for an external alarm output or charger on/off control.
The DC Energy Display includes a precision 500-amp, 50 mV shunt and is compatible with 50- to 500-amp, 50 mV shunts, providing a complete battery monitoring solution for fire apparatus, rescue vehicles, ambulances, marine vessels, and other emergency or specialty vehicle electrical systems.
Features
• Digital battery energy monitoring system for 12-volt and 24-volt electrical systems
• Monitors voltage on up to three separate battery banks
• Displays battery voltage from 9.5 to 33.0 VDC
• Monitors charge and discharge current on the primary house battery bank
• Displays current up to 500 amps
• Tracks energy used and remaining for battery capacities up to 3,000 amp-hours
• Displays total energy as amp-hours or percent of charge
• Applies Peukert's and efficiency factors for improved battery capacity calculations
• Programmable high- and low-voltage alarms
• Programmable low amp-hours remaining alarm
• Built-in 85 dB audible alarm and flashing display provide notification of alarm conditions
• Provides NMEA 0183 compatible serial data output
• Data line can be configured as an external alarm output or charger on/off control
• Includes precision 500-amp, 50 mV shunt
• Compatible with 50- to 500-amp, 50 mV shunts
• Watertight construction for demanding vehicle and marine installations
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Digital DC Battery Energy Monitor
• Number of Battery Banks Monitored: 3
• Compatible Battery Systems: 12 VDC and 24 VDC
• Voltage Range: 9.5 to 33.0 VDC
• Voltage Accuracy: Better Than ±0.1 VDC
• Current Range: -500 to +500 Amps (Bank 1 Only)
• Current Accuracy: 1% ±1 Amp
• Battery Capacity Monitoring: Up to 3,000 Amp-Hours
• Capacity Remaining Range: 0% to 100% (Bank 1 Only)
• Monitored Energy Values: Amp-Hours and Percent of Charge
• Included Shunt: 500 Amp, 50 mV
• Compatible Shunts: 50 to 500 Amp, 50 mV
• Alarm Types: High Voltage, Low Voltage, and Low Amp-Hours Remaining
• Audible Alarm Level: 85 dB
• Data Output: NMEA 0183 Compatible
• NMEA 0183 Output Sentences: $IIXDR,V; $IIXDRA,A; $IIXDR,G
• Power Supply: 9.5 to 33.0 VDC
• Nominal Current Draw: 0.018 Amps
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Display Type: Digital
• Construction: Watertight
• Weight: 0.25 lbs.
• Warranty: 3 Years
