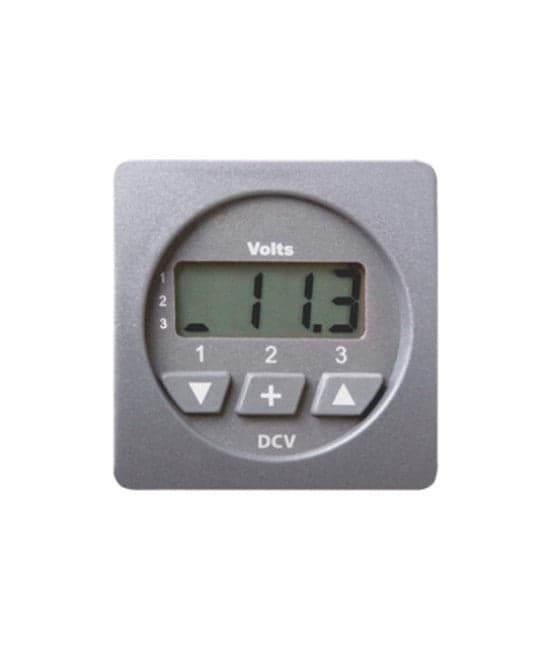

The Kussmaul DC Voltmeter Display is a watertight digital battery monitoring instrument designed to provide accurate voltage readings for up to three 12-volt or 24-volt battery banks. With an operating range of 9.5 to 33.0 VDC, the display continuously monitors all three connected battery banks while allowing operators to select which battery bank voltage is shown on the digital display.
Independent high- and low-voltage alarm settings can be configured for each battery bank. If a battery voltage exceeds the programmed limits, the built-in 85 dB audible alarm sounds and the display flashes to alert personnel. The unit can provide either an external alarm output or NMEA 0183 compatible data output, allowing battery voltage information to be transmitted as a 4800 baud serial data stream once per second.
Designed for direct connection to vehicle batteries, the DC Voltmeter Display provides dependable battery monitoring for fire apparatus, rescue vehicles, ambulances, marine vessels, and other emergency or specialty vehicle electrical systems.
Features
• Digital voltmeter display for monitoring up to three battery banks
• Compatible with 12-volt and 24-volt battery systems
• Monitors battery voltages from 9.5 to 33.0 VDC
• Continuously monitors all three connected battery banks
• Push-button selection of the battery bank voltage displayed
• Independent high- and low-voltage alarm settings for each battery bank
• Built-in 85 dB audible alarm alerts operators to abnormal voltage conditions
• Digital display flashes when a voltage alarm is activated
• Wires directly to the vehicle batteries
• Selectable external alarm output or NMEA 0183 compatible data output
• NMEA 0183 output transmits battery voltage data once per second at 4800 baud
• Watertight construction for demanding vehicle and marine installations
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Digital DC Battery Voltmeter Display
• Number of Battery Banks Monitored: 3
• Compatible Battery Systems: 12 VDC and 24 VDC
• Voltage Range: 9.5 to 33.0 VDC
• Accuracy: Better Than ±0.1 VDC
• Power Supply: 9.5 to 33.0 VDC
• Nominal Current Draw: 0.018 Amps
• Alarm Type: Adjustable High- and Low-Voltage Alarm
• Audible Alarm Level: 85 dB
• Data Output Option: NMEA 0183 Compatible
• Data Transmission Rate: 4800 Baud
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Display Type: Digital
• Construction: Watertight
• Weight: 0.25 lbs.
• Warranty: 3 Years
