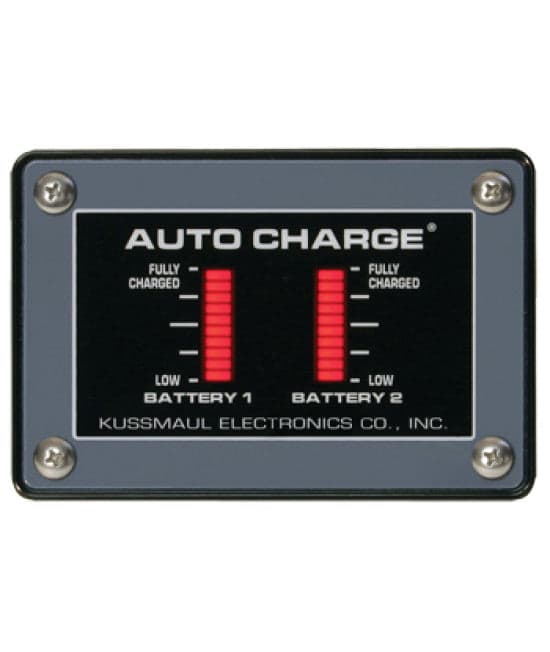

The Kussmaul Dual Bar Graph Display (2000 PLC) is a vehicle-mounted battery monitoring indicator designed for use with compatible Kussmaul 2000 PLC charging systems. Featuring a dual bar graph configuration, the display provides convenient visual monitoring of DC voltage from an accessible location on the vehicle.
Designed for use with the Kussmaul Auto Charge 2000 PLC and Pump Plus 2000 PLC systems, the display provides a compact monitoring solution for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. The indicator mounts securely to the vehicle using four supplied #8-32 screws and is designed to maintain a watertight seal when properly installed.
Features
• Dual bar graph display for compatible Kussmaul 2000 PLC charging systems
• Provides convenient visual monitoring of DC voltage
• Designed for use with the Kussmaul Auto Charge 2000 PLC
• Designed for use with the Kussmaul Pump Plus 2000 PLC
• Dual bar graph configuration provides easy-to-read charging system status
• Vehicle-mounted design allows installation in an accessible viewing location
• Connects to the charger according to the applicable charger installation instructions
• Includes four #8-32 screws for secure installation
• Designed to maintain a watertight seal when properly installed
• Suitable for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Dual Bar Graph Battery Charger Display
• Display Type: Dual Bar Graph
• Monitored Function: DC Voltage
• DC Voltage Monitoring: Yes
• Compatible Systems: Kussmaul Auto Charge 2000 PLC and Pump Plus 2000 PLC
• Mounting Hardware: Four #8-32 Screws
• Application: Vehicle Battery Charging System Monitoring
Installation Notes
• Select a convenient mounting location on the vehicle
• Position the supplied template and mark the four mounting locations
• Drill the required holes and cut the square mounting opening according to the template
• Connect the indicator wiring to the charger according to the applicable charger installation instructions
• Install the indicator and secure it using the four supplied #8-32 screws
• Do not overtighten the mounting screws, as excessive tightening may bend the plastic bezel and compromise the watertight seal
