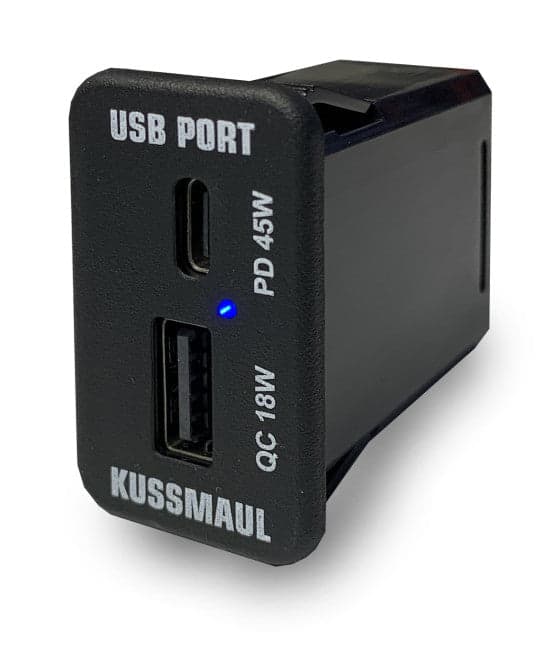

The Kussmaul Dual Port USB-C & USB-A – SVR provides fast, reliable charging for today's USB-powered electronic devices in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicles. Designed to fit a standard SVR dashboard switch opening, this compact charging module combines one USB-C and one USB-A charging port, allowing responders to power multiple devices from a single panel-mounted unit.
Delivering up to 63 watts total output, the charger provides 45 watts through the USB-C port and 18 watts through the USB-A port, allowing two compatible devices to charge simultaneously. A built-in blue LED indicator confirms the unit is powered, while reverse polarity protection enhances reliability. Compatible with 10–30 VDC electrical systems, the unit can be connected to either 12V or 24V switched ignition or directly to the vehicle battery for flexible installation. The Dual Port USB-C & USB-A charger is backed by a 3-year manufacturer's warranty.
Features
• Dual charging ports with one USB-C and one USB-A connection
• Delivers up to 63 watts total charging power
• USB-C port provides up to 45 watts of output
• USB-A port provides up to 18 watts of output
• Charges two compatible devices simultaneously
• Built-in blue LED indicates the unit is powered
• Reverse polarity protected for dependable operation
• Fits a standard SVR dashboard switch opening
• Compatible with 12V and 24V vehicle electrical systems
• Can be connected to switched ignition or directly to the battery
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicles
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Dual Port USB-C & USB-A Charger
• Dashboard Accessory Switch Type: SVR
• Input Voltage: 10–30 VDC (10–32 VDC Absolute Minimum/Maximum)
• Input Current: 6 Amps Maximum @ 12.0 VDC (63-Watt Load)
• Maximum Output Current: 5.5 Amps
• USB-C Output Voltage: 3.3–21 VDC
• USB-A Output Voltage: 3.6–12 VDC
• Maximum Total Output: 63 Watts (45W USB-C / 18W USB-A)
• Indicator: Blue LED (Power On)
• Operating Temperature: -40°C to 80°C (12V) / -40°C to 70°C (24V)
• Warranty: 3-Year Manufacturer's Warranty
