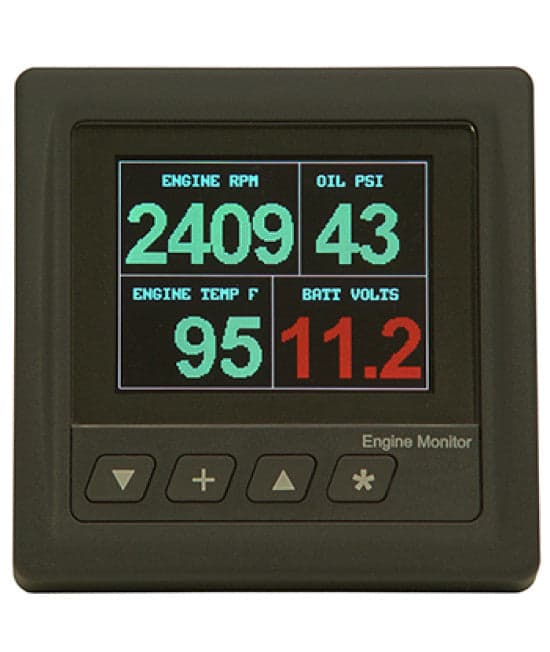

The Kussmaul Engine Monitor (VOTT Meter) is a digital engine monitoring instrument designed to simultaneously display critical vehicle engine and electrical system information. Featuring large 1/2-inch high-visibility green LED digits, the monitor displays DC battery voltage, engine oil pressure, engine temperature, and engine RPM on a single screen for convenient system monitoring.
Designed to receive engine data through J1939 communication, the VOTT Meter features a user-selectable baud rate of 50, 125, 250, 500, or 1000k bits. Built-in programmable alarms monitor engine RPM, low and high oil pressure, high engine temperature, and low and high battery voltage conditions to help operators quickly identify abnormal vehicle operating conditions.
A four-button keypad with on-screen menus provides straightforward configuration of functions and alarm settings, while four selectable display brightness levels improve visibility in changing operating environments. The monitor operates from 9.5 to 33.0 VDC and features a low-power sleep mode that draws less than 20 mA to help conserve vehicle batteries.
Designed for fire apparatus, rescue vehicles, and other emergency or specialty vehicle applications, the VOTT Meter features a waterproof instrument face and provides centralized monitoring of critical engine and electrical system information.
Features
• Digital engine and electrical system monitoring instrument
• Simultaneously displays four critical vehicle operating functions on one screen
• Monitors DC battery voltage
• Monitors engine oil pressure
• Monitors engine temperature
• Displays engine RPM through an integrated tachometer function
• Receives engine operating data through J1939 communication
• User-selectable baud rates of 50, 125, 250, 500, or 1000k bits
• Large 1/2-inch high-visibility green LED digits
• Built-in engine RPM alarm
• Programmable low- and high-oil-pressure alarms
• Programmable high-engine-temperature alarm
• Programmable low- and high-battery-voltage alarms
• Four-button keypad with on-screen menus for system configuration
• Four selectable display brightness levels
• Engine temperature can be displayed in Fahrenheit or Celsius
• Low-power sleep mode draws less than 20 mA to help conserve vehicle batteries
• Waterproof instrument face for demanding vehicle installations
• Designed for fire apparatus, rescue vehicles, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Digital Engine Monitoring Instrument
• Model: VOTT Meter
• Number of Displayed Functions: 4
• Displayed Functions: DC Battery Voltage, Engine Oil Pressure, Engine Temperature, and Engine RPM
• Communication Protocol: J1939
• Selectable Baud Rates: 50, 125, 250, 500, and 1000k Bits
• Display Type: Digital LED Display
• Digit Height: 0.5 Inch
• Standard Display Color: High-Visibility Green
• Battery Voltage Range: 9.5 to 33.0 VDC
• Engine RPM Range: 0000 to 9999 RPM or as Provided by J1939
• Engine Temperature Range: 100°F to 250°F or as Provided by J1939
• Temperature Display Units: Fahrenheit or Celsius, User Selectable
• Accuracy: As Provided by J1939
• Power Supply: 9.5 to 33.0 VDC
• Current Draw: 80 mA
• Sleep Mode Current Draw: Less Than 20 mA
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Display Brightness: 4 Selectable Levels
• Programming Interface: Four-Button Keypad with On-Screen Menus
• Instrument Face: Waterproof
• Weight: 1 lb.
• Warranty: 3 Years
