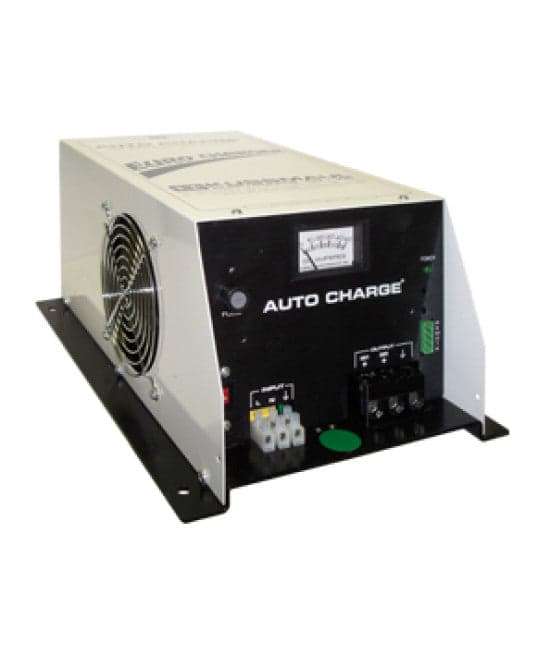

The Kussmaul Euro Charger II VHO is a fully automatic, high-output battery charger designed to charge and maintain two 12-volt battery banks while supporting continuous parasitic DC loads. Engineered to meet CE requirements, the Euro Charger II VHO provides a 40-amp total charging output for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles with dual battery systems and demanding electrical loads.
The charger uses precise voltage regulation to maintain consistent charging output despite changes in connected loads or AC input voltage. Active current limiting prevents charger output from exceeding its rated capacity when charging deeply discharged batteries or if the vehicle is started while connected to the charger. Its automatic float charging profile maintains both connected battery banks in a ready-to-start condition while supporting onboard equipment such as data terminals, radios, hand lights, and other electrical loads.
A front-panel ammeter provides convenient monitoring of total charger output current. Optional remote indicators are available, including a two-LED display that indicates AC power and charger output status and a dual bar graph display that provides individual voltage monitoring for each battery bank.
Built with a heavy-duty aluminum enclosure, protective front panel plate, and wire strain relief, the Euro Charger II VHO is designed for demanding vehicle installations and supports 120/230 VAC, 50/60 Hz input power.
Features
• Fully automatic high-output battery charger for dual 12-volt battery banks
• 40-amp total charging output for vehicles with demanding electrical systems
• Automatic float charging helps maintain both battery banks in a ready-to-start condition
• Automatically regulates charging output to two battery banks
• Supports continuous parasitic DC loads such as data terminals, radios, hand lights, and other onboard equipment
• Precise voltage regulation maintains consistent charger output despite load and AC input voltage variations
• Active current limiting prevents output current from exceeding the charger's rated capacity
• Provides charging protection when batteries are deeply discharged or the vehicle is started while connected to the charger
• Front-panel ammeter provides convenient monitoring of total charger output current
• Optional two-LED remote display provides AC power and charger output status indication
• Optional dual bar graph remote display provides individual voltage monitoring for each battery bank
• Supports 120/230 VAC, 50/60 Hz input power
• Heavy-duty aluminum enclosure for demanding vehicle installations
• Protective front panel plate helps protect charger components
• Integrated wire strain relief supports secure electrical connections
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• Meets CE requirements
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic High-Output Dual-Bank Vehicle Battery Charger
• Charger Configuration: Dual Output
• Battery Banks Supported: 2
• Output Voltage: 12 VDC
• Total Output Current: 40 Amps
• Charging Profile: Float
• AC Input Voltage: 120/230 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 10 Amps at 120 VAC / 5 Amps at 230 VAC
• Input Fuse: 12 Amps, Fast Acting
• Output Fuse: 80 Amps
• Charge Indicator: 0 to 50 Amp Front-Panel Ammeter
• Optional Remote Displays: Two-LED Indicator or Dual Bar Graph Display
• Parasitic Load Compensation: No
• Low-Profile Design: No
• Current Limiting: Active Current Limiting
• Enclosure Construction: Heavy-Duty Aluminum
• CE Compliance: Meets CE Requirements
• EV Series: No
• Weight: 22 lbs.
• Warranty: 3 Years
