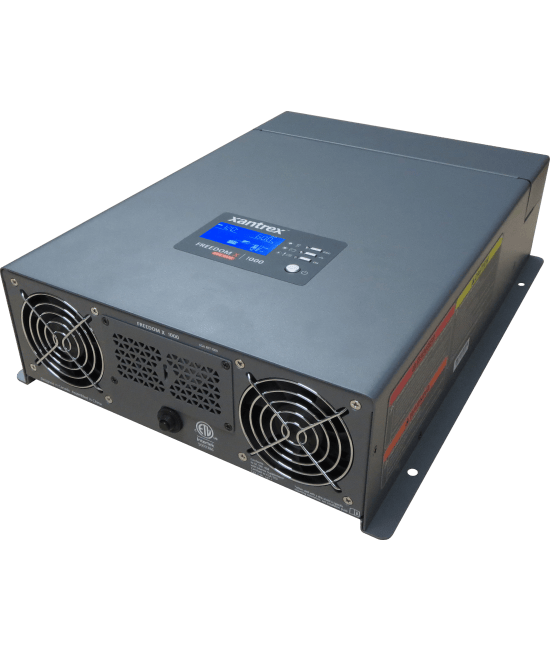

The Kussmaul Freedom X 3000 Inverter is a high-performance 3000-watt true sine wave inverter designed to provide clean, dependable AC power for sensitive electronics, motor-driven equipment, and other electrical loads in fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle applications. Combining high surge capability, a wide DC input range, ignition control, and an integrated AC transfer relay, the Freedom X 3000 provides reliable mobile power in a compact package designed for efficient installation.
The Freedom X 3000 provides extended surge capability of up to twice its continuous output power for 2 seconds, helping start motors and other electrical equipment with high initial power demands. True sine wave AC output provides clean power for sensitive electronic devices while supporting demanding motor loads.
An integrated ignition control feature allows the inverter to be switched ON and OFF using a 12 VDC signal. This capability helps minimize unnecessary battery drain by allowing the inverter to shut down when the vehicle ignition is turned OFF. A wide DC operating range supports high-voltage alternators commonly found on newer vehicle chassis.
The built-in 30-amp AC transfer relay automatically detects incoming shore or generator power and transfers connected loads from inverter power to the external AC source. A large wiring compartment and quick-connect AC input and output terminals simplify installation and provide convenient access for vehicle builders and equipment installers.
Features
• 3000-watt true sine wave inverter for demanding mobile power applications
• Provides clean AC power for sensitive electronics and motor-driven equipment
• Extended surge capability provides up to twice the continuous output power for 2 seconds
• High surge capacity helps start motors and other difficult electrical loads
• Ignition control allows the inverter to be switched ON and OFF using a 12 VDC signal
• Helps minimize battery drain by allowing inverter shutdown when the vehicle ignition is turned OFF
• Wide DC input range supports high-voltage alternators found on newer vehicle chassis
• Built-in 30-amp AC transfer relay automatically detects incoming external AC power
• Automatically transfers connected loads from inverter power to shore or generator power when available
• True sine wave output supports sensitive electronic equipment and demanding electrical loads
• Large wiring compartment provides convenient access during installation
• Quick-connect AC input and output terminals simplify electrical wiring
• Compact design supports installation in emergency and specialty vehicles
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: True Sine Wave Inverter
• Model: Freedom X 3000
• Part Number: 817-3000
• Nominal DC Voltage: 12 VDC
• Continuous Output Power: 3000 Watts
• Surge Capacity: Up to 2X Continuous Output Power for 2 Seconds
• Output Waveform: True Sine Wave
• Nominal DC Current at Full Load: 288 Amps DC
• DC Input Range: 10 to 18 VDC
• Maximum Non-Operating Voltage: 24.0 VDC
• Transfer Relay Rating: 30 Amps
• Ignition Control: 12 VDC Signal Input
• Operating Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Output Derating Temperature: Above 104°F (40°C)
• Storage Temperature Range: -40°F to 158°F (-40°C to 70°C)
• Operating Humidity: 5% to 95% RH, Non-Condensing
• Dimensions: 15.4" L x 10.8" W x 4.0" H (390 x 275 x 102 mm)
• Net Weight: 16.5 lbs. (7.5 kg)
