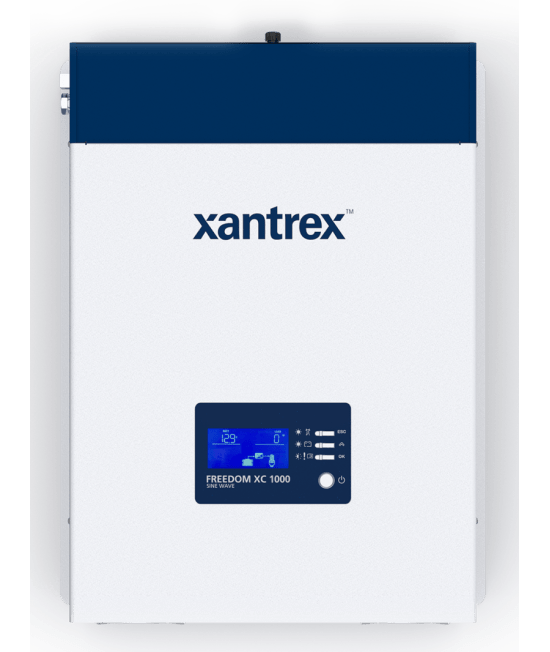

The Kussmaul Freedom XC 1000 is a high-performance 1000-watt true sine wave inverter/charger designed to provide dependable AC power and advanced battery charging for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems. Combining efficient inverter performance, flexible battery charging capabilities, and mobile monitoring in a compact, lightweight package, the Freedom XC 1000 is designed for demanding mobile power applications.
The Freedom XC 1000 delivers 1000 watts of continuous true sine wave AC output at temperatures from -4°F to 104°F (-20°C to 40°C), providing full rated performance across a wide range of operating environments. An extended surge capacity of up to 2000 watts helps start motors and other electrical equipment with high initial power demands.
The integrated battery charger supports lithium-ion batteries and can charge deeply discharged batteries down to 0 volts. Selectable DC charging current settings from 5 to 50 amps allow the charger to be configured for different battery systems and installation requirements. Configurable AC output voltage and frequency settings provide additional flexibility for specialized vehicle applications.
Bluetooth connectivity allows users to monitor and configure the Freedom XC 1000 through compatible iOS and Android devices. ETL listing to CSA 107.1 and UL 458 standards provides additional assurance for installations requiring recognized electrical safety certifications.
Features
• 1000-watt true sine wave inverter/charger for demanding mobile power applications
• Provides full rated performance from -4°F to 104°F (-20°C to 40°C)
• Delivers 1000 watts of continuous AC output power
• Extended surge capacity provides up to 2000 watts for starting difficult electrical loads
• True sine wave output provides clean AC power for sensitive electronic equipment
• Supports lithium-ion battery charging applications
• Capable of charging deeply discharged batteries down to 0 volts
• Selectable DC charging current from 5 to 50 amps
• Configurable AC output voltage options provide installation flexibility
• Configurable output frequency supports 60 Hz or 50 Hz operation
• Bluetooth connectivity allows system monitoring and configuration through compatible mobile devices
• Compatible with iOS and Android devices
• High power factor at full charge rate supports efficient battery charging
• Compact and lightweight package simplifies installation in emergency and specialty vehicles
• ETL listed to CSA 107.1 and UL 458 standards
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: True Sine Wave Inverter/Charger
• Model: Freedom XC 1000
• Continuous Output Power: 1000 Watts at 40°C
• Output Waveform: True Sine Wave (TSW)
• Continuous AC Output Current: 8.4 Amps
• Surge Power: 2000 Watts
• AC Output Voltage Options: 120, 110, or 108 VAC
• Output Frequency: Configurable to 60 Hz or 50 Hz
• Peak Efficiency: 91%
• Full Load Efficiency: 87.3% or Greater
• DC Nominal Current at Full Load: 100 Amps DC
• Minimum Battery Voltage for Charging: 0.0 VDC
• Maximum DC Output Voltage: 18.0 VDC with Custom Battery Type
• Selectable DC Output Current: 5 to 50 Amps
• Full Load Maximum AC Input Current: 7 Amps RMS
• Power Factor at Full Charge Rate: Greater Than 98%
• AC Pass-Through Operating Voltage Range: 85 to 140 VAC
• Safe Non-Operating AC Input Voltage Range: Up to 240 VAC RMS
• Operating Temperature at Full Output: -4°F to 104°F (-20°C to 40°C)
• Mobile Monitoring and Configuration: Bluetooth Connectivity
• Mobile Device Compatibility: iOS and Android
• Certifications: ETL Listed to CSA 107.1 and UL 458
