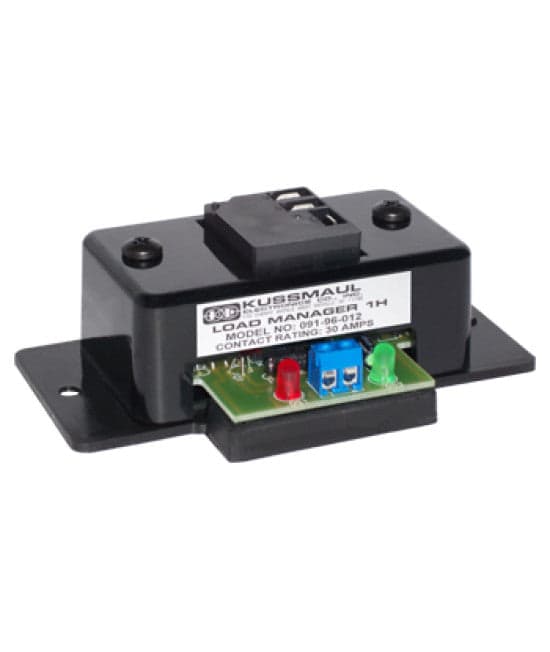

The Kussmaul Load Manager 1H 12V is a compact, economical load management controller designed to monitor a 12 VDC electrical system and automatically shed one electrical load when low-voltage conditions are detected. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, the Load Manager 1H helps protect battery system performance by disconnecting non-critical equipment when system voltage falls below the selected set point.
The Load Manager 1H features a high-hysteresis design that prevents a shed load from immediately cycling back ON as system voltage begins to recover. Once the relay operates due to low voltage, the connected load remains disconnected until the monitored voltage rises more than 1.4 volts above the set point. This differential helps prevent rapid relay cycling and provides more stable load management during fluctuating electrical system conditions.
The voltage set point and hysteresis are field adjustable, with an adjustable voltage range of 10.5 to 13 volts and a standard set point of 12.0 volts. Green and red LED indicators provide clear system status, while the heavy-duty 30-amp relay contacts can interrupt the connected load or operate a remote indicator light. When system voltage recovers sufficiently, the Load Manager 1H automatically resets and restores normal operation.
Features
• Automatically manages and sheds one electrical load during low-voltage conditions
• Designed for 12 VDC vehicle electrical systems
• Continuously monitors DC system voltage
• Heavy-duty 30-amp relay contacts provide dependable load control
• High-hysteresis design helps prevent rapid relay cycling
• Maintains the shed condition until system voltage rises more than 1.4 volts above the set point
• Field-adjustable voltage set point and hysteresis
• Adjustable voltage range from 10.5 to 13 volts
• Standard voltage set point of 12.0 volts
• Relay operates to interrupt the connected electrical load
• Can operate a remote indicator light for additional system status indication
• Green LED indicates normal system voltage
• Red LED indicates an under-voltage condition
• Automatic reset restores normal operation when system voltage sufficiently recovers
• Compact design simplifies installation in emergency and specialty vehicles
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Single-Load Low-Voltage Management Controller
• Model: Load Manager 1H 12V
• Load Management: Yes
• Input Voltage: 12 VDC
• Number of Loads: 1
• Adjustable Voltage Range: 10.5 to 13 Volts
• Standard Set Point: 12.0 Volts
• Hysteresis: 1.4 Volts
• Relay Contact Rating: 30 Amps
• Relay Function: Interrupts Connected Load During Low-Voltage Conditions
• Automatic Reset: Yes
• Indicators: Green LED – Normal Voltage; Red LED – Under Voltage
• Remote Indicator Capability: Yes
• Field-Adjustable Set Point: Yes
• Field-Adjustable Hysteresis: Yes
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
