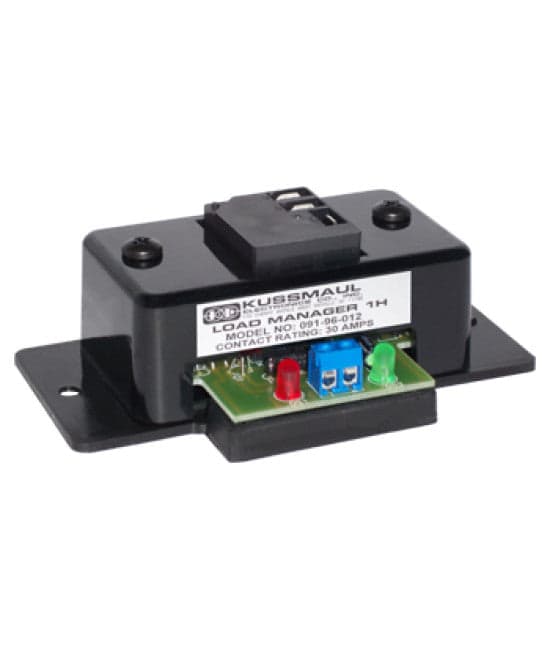

The Load Manager 1H is a small economical assembly that monitors a D.C. voltage, and operates a relay when the voltage drops below its set point. This unit is unique in that a special high hysteresis feature maintains the relay in the energized condition, even if the voltage rises again. This prevents the load that has been shed, from being reenergized, until the sensed voltage rises more than 1.4 volts above the set point. Voltage set point and hysteresis are field adjustable. LED indicators are provided adjacent to the terminal strip, to indicate whether the system voltage is normal, or that the voltage has dropped below the set point. Installation instructions that are provided with each unit, contain a procedure for readjusting the under voltage set point.
- Sheds 1 Load
- 30 Amp Relay Contact Rating
- 1.4 Volt Differential Between Relay Pull-In and Drop-Out
- Monitors 12 Volt System and Detects Low Voltage
- Relay Operates to Interrupt Load
- May Operate Remote Indicator Light
- Automatic Reset when Voltage Rises
- 3 year warranty
