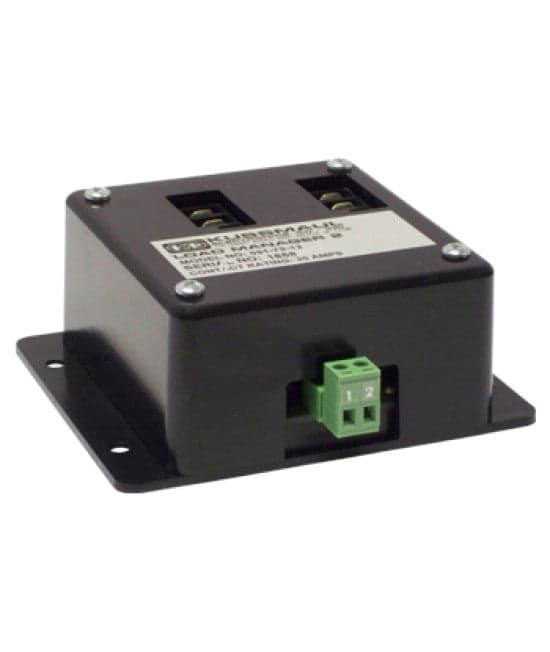

The Kussmaul Load Manager 2 24V is a compact load management controller designed to automatically shed up to two electrical loads when low-voltage conditions are detected. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, the Load Manager 2 helps manage electrical demand and protect battery system performance by sequentially controlling non-critical electrical loads as system voltage decreases.
The Load Manager 2 continuously monitors the vehicle's DC electrical system. When system voltage drops below the preset threshold, the first relay operates to control or disconnect the first load. If voltage drops an additional 0.5 volts, the second relay operates to control the second load. Both relays provide normally open and normally closed 30-amp contacts, allowing flexible integration with a variety of vehicle electrical circuits. When system voltage rises to an acceptable level, the Load Manager 2 automatically resets and restores normal operation.
Features
• Automatically manages and sheds up to two electrical loads
• Designed for 24 VDC vehicle electrical systems
• Continuously monitors DC system voltage for low-voltage conditions
• First relay operates when system voltage drops below the preset threshold
• Second relay operates when voltage drops an additional 0.5 volts
• Sequential load control helps manage vehicle electrical demand
• Automatic reset restores normal operation when system voltage rises
• Two heavy-duty 30-amp relays provide dependable load control
• Normally open and normally closed relay contacts provide flexible wiring configurations
• Helps prioritize critical electrical equipment during low-voltage conditions
• Compact design simplifies installation in emergency and specialty vehicles
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Two-Load Voltage-Sensing Load Management Controller
• Model: Load Manager 2
• Voltage Application: 24 VDC
• Input Voltage: 24 VDC
• Number of Loads: 2
• Number of Relays: 2
• Relay Contact Rating: 30 Amps per Relay
• Relay Contacts: Normally Open and Normally Closed
• Relay Sequencing: Second Relay Operates 0.5 Volts Below the First Relay Threshold
• Set Point: 11.5 Volts
• Automatic Reset: Yes
• Current Draw – Relays ON: 0.20 Amps
• Current Draw – Relays OFF: 0.020 Amps
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
