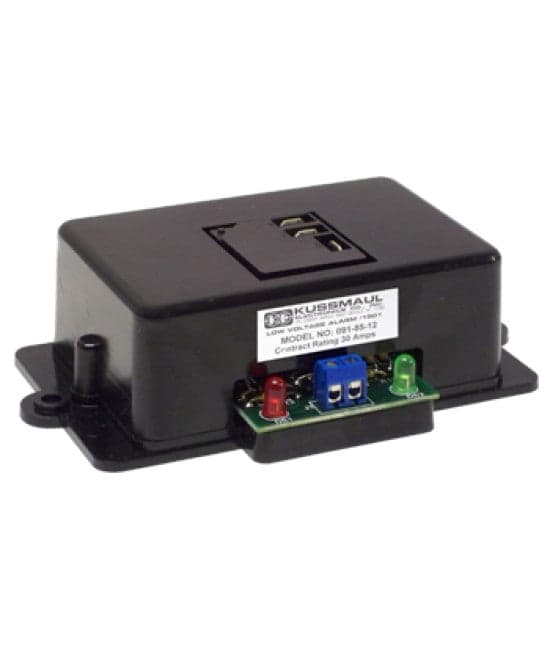

The Kussmaul Low Voltage Alarm 24V monitors vehicle battery voltage and activates an external warning indicator or alarm when voltage remains below the preset threshold for 120 seconds. Designed for fire apparatus and other emergency vehicle electrical systems, the Low Voltage Alarm helps alert operators to sustained low-voltage conditions that could affect vehicle readiness and the operation of critical onboard electrical equipment.
The unit continuously monitors battery voltage using a simple two-wire sensing connection. During normal voltage conditions, a green LED remains illuminated. If battery voltage drops below the preset threshold and remains low for 120 seconds, the green LED turns off, the red LED illuminates, and the internal relay activates. The relay provides both normally open and normally closed contacts, allowing the installer to connect a variety of external visual indicators, audible alarms, or compatible load-control circuits. The voltage set point and time delay are designed to meet the stated requirements of NFPA 1901, Paragraph 9-3.3.
Features
• Monitors 24V vehicle battery systems for sustained low-voltage conditions
• Detects when battery voltage drops below the preset threshold
• 120-second time delay helps prevent activation from temporary voltage fluctuations
• Green LED indicates normal battery voltage conditions
• Red LED indicates a sustained low-voltage condition
• Internal relay activates after the low-voltage condition remains present for 120 seconds
• 30-amp relay contact rating provides dependable control of external indicators, alarms, or compatible circuits
• Normally open and normally closed relay contacts provide flexible installation options
• Can operate an external audible alarm or visual low-voltage indicator
• Supports control of one load
• Requires only two wires to sense battery voltage for simplified installation
• Designed to meet the stated low-voltage alarm requirements of NFPA 1901, Paragraph 9-3.3
• Ideal for fire apparatus and other emergency vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Low Voltage Alarm and Monitoring Relay
• Voltage Application: 24V Electrical Systems
• Monitored Condition: Low Battery Voltage
• Low Voltage Delay: 120 Seconds
• Load Control Capacity: 1 Load
• Relay Contact Rating: 30 Amps
• Relay Contacts: Normally Open and Normally Closed
• Indicators: Green LED for Normal Voltage; Red LED for Low Voltage Condition
• Alarm Capability: Operates Compatible External Audible or Visual Warning Devices
• Voltage Sensing Connection: Two-Wire
• Compliance: Designed to Meet NFPA 1901, Paragraph 9-3.3 Requirements
• Warranty: 3-Year Manufacturer's Warranty
