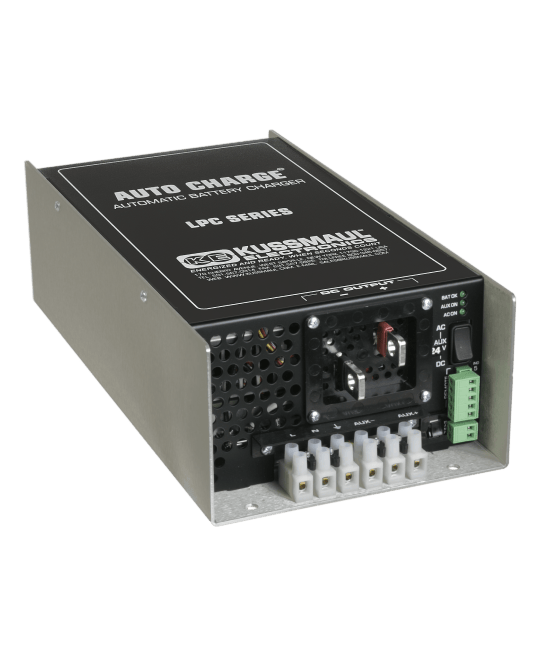

The Kussmaul LPC 45 is a compact, high-output battery charger designed to charge and maintain a single 24-volt battery bank in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. Delivering a 45-amp charging output with a three-step charging profile, the LPC 45 provides dependable battery charging performance in a lightweight, low-profile package.
The charger provides clean electrical output designed to minimize interference with radios and other sensitive mobile electronics. An auxiliary 24 VDC, 15-amp output circuit with a power source selector switch allows the LPC 45 to support accessory loads such as air compressor pumps, hand lights, and handheld radios.
Front-panel connections provide convenient integration of remote displays and auxiliary electrical loads. Remote battery sensing helps compensate for voltage drop caused by longer charging cables to provide accurate charging performance at the battery. Built with a heavy-duty aluminum enclosure for demanding emergency vehicle installations, the LPC 45 is compatible with select Kussmaul Super Auto Eject Deluxe Cover bar graph and digital display configurations.
Features
• High-output battery charger for a single 24-volt battery bank
• 45-amp charging output for demanding emergency vehicle electrical systems
• Three-step charging profile for automatic battery charging and maintenance
• Lightweight, compact, low-profile design simplifies vehicle installation
• Clean electrical output helps prevent interference with radios and other sensitive mobile electronics
• Auxiliary 24 VDC, 15-amp output circuit for powering compatible accessory loads
• Power source selector switch provides control of auxiliary load power
• Supports accessory loads such as air compressor pumps, hand lights, and handheld radios
• Front-panel connections for remote displays and auxiliary electrical loads
• Remote battery sensing helps compensate for voltage drop caused by longer charging cables
• Heavy-duty aluminum enclosure designed for demanding emergency vehicle installations
• Remote display options include Bar Graph Display, Deluxe Status Center, and Watertight Status Center
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-234-XXX with Bar Graph Display
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-194C-24-XXX with Digital Display
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Low-Profile 24V Vehicle Battery Charger
• Charger Configuration: Single Battery Bank
• Output Voltage: 24 VDC
• Output Current: 45 Amps
• Charging Profile: 3-Step
• AC Input Voltage: 120 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 13 Amps
• Input Protection: 15-Amp External Manual Reset Circuit Breaker
• Output Fuse: 60 Amps
• Output Fuse Part Number: 090-0060-0
• Auxiliary Output: 24 VDC, 15 Amps
• Auxiliary Circuit Protection: 15-Amp Internal Manual Reset Circuit Breaker
• Remote Battery Sensing: Yes
• Remote Display Included: Yes
• Remote Display Options: Bar Graph Display, Deluxe Status Center, or Watertight Status Center
• Low-Profile Design: Yes
• Parasitic Load Compensation: No
• Enclosure Construction: Heavy-Duty Aluminum
• EV Series: No
• Weight: 10 lbs.
• Warranty: 3 Years
