Description

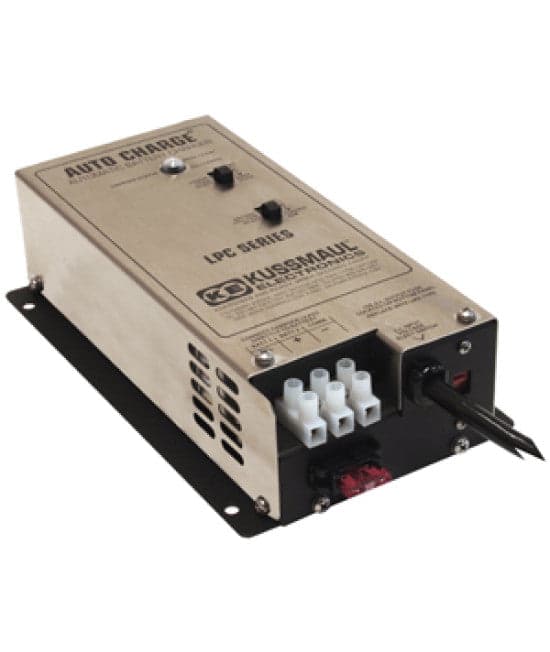

The Kussmaul LPC 7 Charger is a compact, fully automatic battery charger designed to charge and maintain single or dual 12-volt battery banks in fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles. Delivering a 7-amp charging output, the LPC 7 combines selectable Float and 3-Step charging modes, battery type selection, clean electrical output, and multiple protection features in a lightweight, low-profile package.
The selectable 3-Step charging profile uses bulk, absorption, and float stages to rapidly replenish batteries and maintain proper charge levels. A Float / 3-Step selector switch allows the charging profile to be configured for the application and helps protect batteries when operating under continuous electrical loads.
A Gel Cell / Lead-Acid selector switch automatically configures the appropriate charge and float voltages for the connected battery type. Clean charger output helps prevent electrical interference with radios and other sensitive mobile electronics, making the LPC 7 well suited for emergency vehicles with onboard communication and electronic equipment.
Current limiting, thermal protection, input and output fuses, and forced-air cooling help protect the charger during demanding operation. A load-activated cooling fan allows continuous operation at the full-rated output while minimizing unnecessary fan operation. The charger status indicator changes color according to charger output, providing convenient visual monitoring of charging operation.
Built with a heavy-duty stainless steel enclosure, the LPC 7 is designed to withstand demanding vehicle-mounted installations while its compact size helps conserve valuable compartment or under-seat space.
Features
• Fully automatic battery charger for single or dual 12-volt battery banks
• 7-amp charging output capacity
• Selectable Float and 3-Step charging profiles
• Three-step charging includes Bulk, Absorption, and Float stages
• Float / 3-Step selector switch allows charging mode to be configured for the application
• Helps protect batteries when charging systems operating under continuous electrical loads
• Gel Cell / Lead-Acid selector switch configures appropriate charge and float voltages
• Clean electrical output helps prevent interference with radios and other sensitive mobile electronics
• Compatible with positive-ground and negative-ground electrical systems
• Charger status indicator changes color according to charger output
• Current limiting helps protect the charger from overload conditions
• Thermal protection provides additional protection during demanding operation
• Input and output fuse protection
• Load-activated cooling fan supports continuous operation at full-rated output
• Forced-air cooling helps maintain reliable charger performance
• Compact, lightweight, low-profile design conserves valuable vehicle compartment space
• Heavy-duty stainless steel enclosure designed for demanding emergency vehicle installations
• Supports 120/240 VAC, 50/60 Hz input power
• Meets CE requirements
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Low-Profile Vehicle Battery Charger
• Charger Series: LPC
• Charger Configuration: Single or Dual Battery Bank
• Output Voltage: 12 VDC
• Output Current: 7 Amps
• Charging Profiles: Float and 3-Step
• 3-Step Charging Stages: Bulk, Absorption, and Float
• Battery Type Selections: Gel Cell and Lead-Acid
• AC Input Voltage: 120/240 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 2.0 Amps at 120 VAC / 1.0 Amp at 240 VAC
• Output Fuse: 10 Amps
• Protection: Input/Output Fuses, Current Limiting, Thermal Protection, and Forced-Air Cooling
• Cooling System: Load-Activated Forced-Air Cooling Fan
• Ground System Compatibility: Positive and Negative Ground Systems
• Charger Status Indicator: Color-Changing Output Status Indicator
• Remote Display Included: No
• Parasitic Load Compensation: No
• Low-Profile Design: Yes
• Enclosure Construction: Heavy-Duty Stainless Steel
• CE Compliance: Meets CE Requirements
• EV Series: No
• Weight: 4 lbs.
• Warranty: 3 Years
