Description

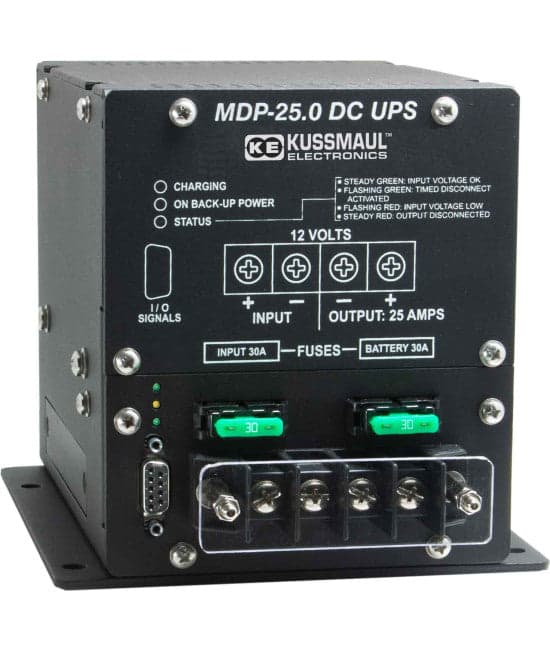

The Kussmaul Mobile Data Power System (MDP) is a power protection, filtering, and battery backup system designed to provide clean, stable, and uninterrupted 12 VDC power to mobile computers and other sensitive electronic equipment. Designed for fire apparatus, ambulances, police vehicles, command vehicles, and other specialty vehicle applications, the MDP helps protect mobile electronics from system crashes, lengthy reboot sequences, data loss, voltage fluctuations, electrical noise, and momentary power interruptions.
The Mobile Data Power System combines filtered DC power, voltage spike protection, internal battery backup, low-output warning signals, and automatic battery charging in one integrated system. When low vehicle battery voltage is detected, the internal sealed rechargeable battery automatically provides supplemental 12 VDC power to connected mobile data equipment. The backup system can provide 5 amps for up to 60 minutes, 10 amps for up to 20 minutes, or 25 amps for up to 6 minutes, helping maintain equipment operation during temporary power interruptions or low-voltage conditions.
A built-in multi-stage filter provides clean power for sensitive mobile electronics and filters electrical interference from audio frequencies through 200 MHz. Integrated voltage spike protection helps protect connected equipment from electrical transients rated up to 100 joules and 4,000 amps maximum. The internal 3-stage, temperature-compensated charger maintains the rechargeable 7 Ah backup battery in a fully charged standby condition. Low-output warning signals can provide compatible mobile computers with advance notification of power conditions, while an optional timed load disconnect provides additional battery protection and power management capability.
Features
• Provides clean, stable, and protected 12 VDC power to mobile computers and sensitive vehicle electronics
• Helps protect mobile data equipment from system crashes, lengthy reboot sequences, and data loss
• Provides supplemental battery power when low vehicle battery voltage is detected
• Internal sealed rechargeable battery automatically supports connected equipment during low-voltage conditions
• Provides 5 amps of backup power for up to 60 minutes
• Provides 10 amps of backup power for up to 20 minutes
• Provides 25 amps of backup power for up to 6 minutes
• Built-in multi-stage filtering provides clean power required by sensitive mobile electronics
• Filters electrical interference from audio frequencies through 200 MHz
• Voltage spike protection rated at 100 joules and 4,000 amps maximum
• Provides low-output warning signals to compatible mobile computers and workstations
• Internal 3-stage, temperature-compensated charger maintains the backup battery in a charged standby condition
• Internal charger provides up to 2 amps of charging current
• Integrated timeout circuitry helps preserve battery capacity
• Optional timed load disconnect provides additional power management capability
• Typical internal battery service life of approximately 5 years
• Ideal for mobile computers, workstations, and other sensitive onboard electronic equipment
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Mobile Data Power Protection and Battery Backup System
• Model: Mobile Data Power System (MDP)
• Input Voltage: 12 VDC
• Maximum Input Current: 28.5 Amps
• Output Voltage: 12 VDC Filtered
• Backup Voltage: 12.0 VDC Nominal
• Internal Battery: Sealed Rechargeable Lead-Acid Battery
• Battery Capacity: 7 Ah
• Typical Battery Life: 5 Years
• Backup Capacity: 5 Amps for 60 Minutes, 10 Amps for 20 Minutes, or 25 Amps for 6 Minutes
• Internal Charger: 2 Amps Maximum, 3-Stage, Temperature Compensated
• Filtering Range: Audio Frequencies Through 200 MHz
• Voltage Spike Protection: 100 Joules, 4,000 Amps Maximum
• Low-Output Warning Signal Capability: Yes
• Timeout Circuit: Yes
• Optional Timed Load Disconnect: Available
• Operating Temperature: 0°C to 50°C
• Weight: 10 lbs.
• Warranty: 3-Year Manufacturer's Warranty
