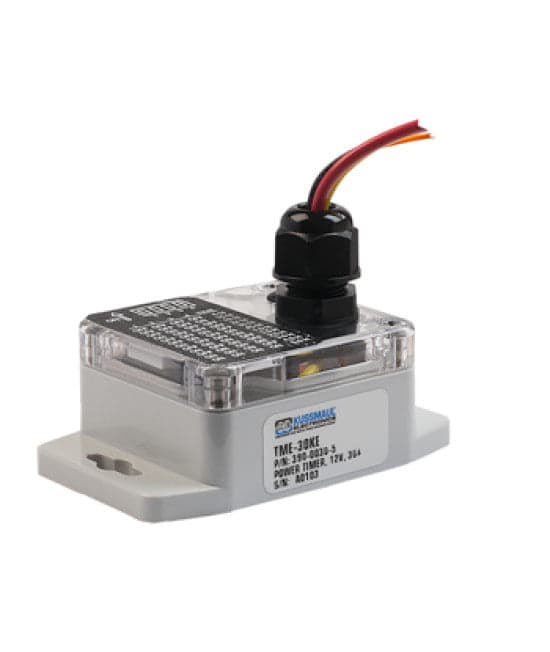

The Kussmaul Power Timer is a weatherproof electronic timer and voltage protection controller designed to provide delayed power shutdown for auxiliary electrical equipment in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle applications. Rated to control loads up to 30 amps, the Power Timer allows radios and other vehicle accessories to remain powered for a programmed period after vehicle shutdown while helping protect the starting battery from damaging low- and high-voltage conditions.
Timing intervals are programmed using easily accessible DIP switches located on top of the unit, providing flexible control over delayed accessory shutdown. Integrated LED indicators provide visual output status information for quick system monitoring. Built-in voltage protection automatically disconnects connected loads when system voltage falls below 10.5 volts for 10 seconds or rises above 15.0 volts for 3 seconds.
Optional ignition-sense wiring allows power to be immediately restored to connected radios when the vehicle ignition is activated, eliminating the need to start the engine before radio power is restored. A weatherproof enclosure and wide operating temperature range make the Power Timer suitable for demanding emergency and specialty vehicle installations.
Features
• Provides programmable delayed power shutdown for auxiliary vehicle electrical loads
• Controls connected loads up to 30 amps
• Allows multiple auxiliary loads to be controlled within the unit's rated capacity
• Timing intervals are programmed using DIP switches located on top of the unit
• Built-in low-voltage disconnect helps protect the starting battery from excessive discharge
• Built-in high-voltage disconnect helps protect connected electrical equipment
• Low-voltage protection activates below 10.5 volts after a 10-second delay
• High-voltage protection activates above 15.0 volts after a 3-second delay
• LED indicators provide visual output status information
• Optional ignition-sense wiring immediately restores power to radios when the ignition is activated
• Eliminates the need to start the engine before restoring radio power when ignition-sense wiring is used
• Weatherproof enclosure provides protection for demanding vehicle installations
• Wide operating temperature range supports reliable operation in varying environmental conditions
• Ideal for radios and other auxiliary electrical equipment requiring delayed shutdown control
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Programmable Power Timer and Voltage Protection Controller
• Model: Power Timer
• Timer: Yes
• Maximum Load Rating: 30 Amps
• Timer Programming: DIP Switches
• Status Indicators: LED Output Status Indicators
• Voltage Protection: High-Voltage and Low-Voltage Disconnect
• Low-Voltage Disconnect Threshold: Below 10.5 Volts
• Low-Voltage Disconnect Delay: 10 Seconds
• High-Voltage Disconnect Threshold: Above 15.0 Volts
• High-Voltage Disconnect Delay: 3 Seconds
• Ignition Sense: Optional Wiring for Immediate Power Restoration When Ignition Is Activated
• Enclosure: Weatherproof
• Operating Temperature: -20°C to +80°C
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
