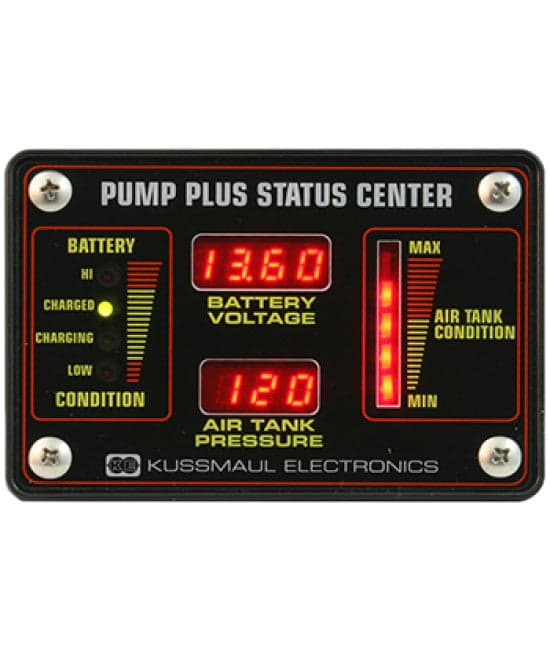

The Kussmaul Pump Plus Status Center is a vehicle-mounted monitoring system designed to provide convenient visual monitoring of air system pressure and battery condition. Combining an air pressure sensor with digital and bar graph displays, the Status Center allows operators to quickly check critical vehicle air and electrical system information from a single indicator.
The Status Center displays air tank pressure in PSI using a 2.5-digit numerical display and provides battery voltage information through a 3.5-digit digital display. A 5-segment bar graph provides an additional visual indication of battery condition for quick system status checks. Designed for emergency and specialty vehicles, the Pump Plus Status Center accepts air pressure up to 150 PSI and operates from a 7 to 16 VDC electrical input.
Features
• Combined air pressure and battery condition monitoring system
• Displays vehicle air tank pressure in PSI
• 2.5-digit numerical air pressure display
• 3.5-digit digital battery voltage display
• 5-segment bar graph provides visual battery condition indication
• Integrated air pressure sensor for vehicle air system monitoring
• 1/8-inch NPT air supply connection
• Supports air pressure inputs up to 150 PSI
• Operates from a 7 to 16 VDC electrical input
• Maximum input current of 100 mA
• Combines air and electrical system monitoring in one vehicle-mounted display
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Air Pressure and Battery Status Monitoring Center
• Air Pressure Display: 2.5-Digit Digital Display
• Battery Voltage Display: 3.5-Digit Digital Display
• Battery Condition Display: 5-Segment Bar Graph
• Air Supply Connection: 1/8-Inch NPT
• Maximum Air Supply Pressure: 150 PSI
• Input Voltage: 7 to 16 VDC
• Maximum Input Current: 100 mA
• Monitored Functions: Air Pressure, DC Battery Voltage, and Battery Condition
• Weight: 0.5 lbs.
• Warranty: 3 Years
