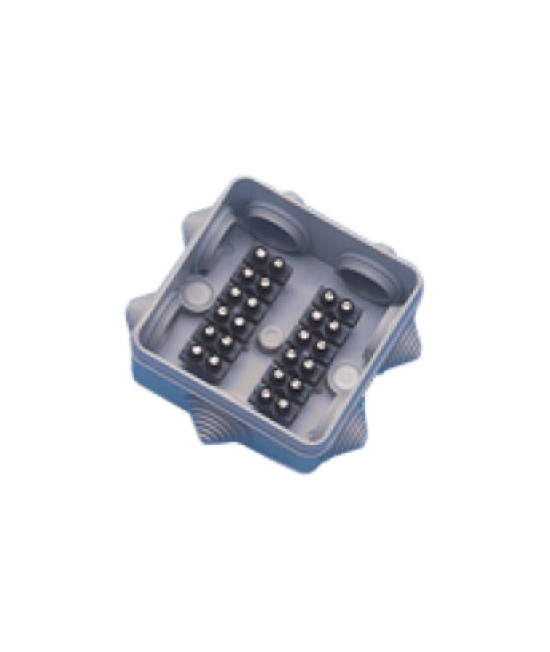

The Kussmaul PX Series PX-2 Waterproof Junction Box – 12 Terminals provides durable, weather-resistant protection for electrical wiring connections exposed to demanding outdoor conditions. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicles, the PX-2 helps protect and organize critical wiring connections while providing convenient access for installation, inspection, and maintenance.
Constructed from rugged, non-corrosive, high-impact polypropylene, the enclosure features a snap-on cover that provides a watertight seal and carries an IEC IP54 rating for protection against water projected at the enclosure from any direction. The PX-2 includes two 6-position connector strips with captive screw compression terminals for secure conductor connections without requiring separate ring or spade terminals. Seven installed cable entry points accommodate a range of cable sizes, while multiple conduit knockouts provide additional flexibility for custom electrical installations.
Features
• Designed for wiring connections exposed to outside conditions on emergency vehicles
• Rugged, non-corrosive, high-impact polypropylene enclosure
• Snap-on cover provides a watertight seal for added environmental protection
• IEC IP54 rated for protection against water projected at the enclosure from any direction
• Two 6-position connector strips provide 12 total connection positions
• Captive screw compression terminals securely connect conductors
• Compression terminals eliminate the need for separate ring or spade terminals
• Seven installed cable entry points provide flexible wiring access
• Accommodates cable diameters from 0.14" to 0.81" (3.5 to 20.5 mm)
• Multiple knockouts provide additional conduit access options
• Supports wire sizes up to 16 AWG
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle applications
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Waterproof Junction Box
• Series: PX Series
• Model: PX-2
• Number of Terminals: 12
• Number of Connector Strips: 2
• Positions Per Connector Strip: 6
• Number of Installed Cable Entries: 7
• Number of Cable Entry Points: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range: 0.14"–0.81" (3.5–20.5 mm)
• Maximum Wire Gauge: 16 AWG
• Enclosure Material: High-Impact Polypropylene
• Waterproof Rating: IEC IP54
• Box Dimensions: 3.35" × 3.35" × 1.66"
