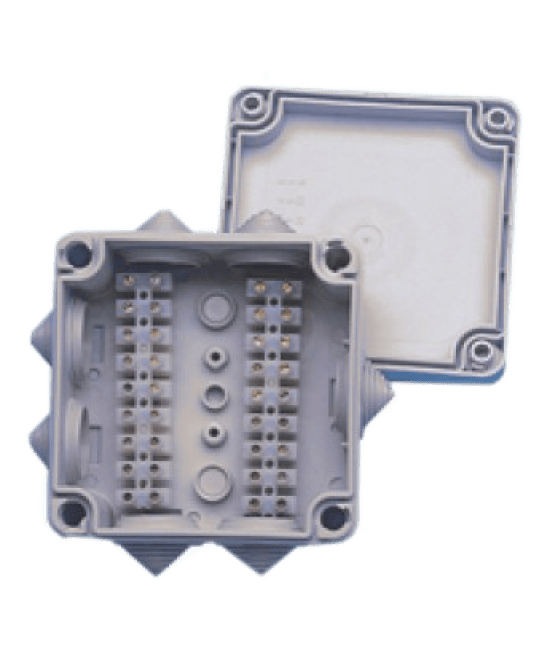

The Kussmaul PX Series PX-3 Waterproof Junction Box – 18 Terminals provides durable, weather-resistant protection for electrical wiring connections exposed to demanding outdoor conditions. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicles, the PX-3 helps protect and organize critical wiring connections while providing convenient access for installation, inspection, and maintenance.
Constructed from rugged, non-corrosive, high-impact polypropylene, the enclosure features a snap-on cover that provides a watertight seal and carries an IEC IP54 rating for protection against water projected at the enclosure from any direction. Multiple cable entry points accommodate a wide range of cable diameters, while removable connector strips with captive screw compression terminals securely connect conductors without requiring separate ring or spade terminals. Multiple conduit knockouts provide additional flexibility for custom electrical installations.
Features
• Designed for wiring connections exposed to outside conditions on emergency vehicles
• Rugged, non-corrosive, high-impact polypropylene enclosure
• Snap-on cover provides a watertight seal for added environmental protection
• IEC IP54 rated for protection against water projected from any direction
• Multiple connector strips with captive screw compression terminals
• Compression terminals secure conductors without requiring separate wiring terminals
• Seven installed cable entry points provide flexible wiring access
• Accommodates cable diameters from 0.14" to 0.99" (3.5 to 25.5 mm)
• Multiple knockouts provide additional conduit access options
• Supports wire sizes up to 16 AWG
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle applications
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Waterproof Junction Box
• Series: PX Series
• Model: PX-3
• Number of Terminals: 18
• Number of Connector Strips: 3
• Positions Per Connector Strip: 9
• Number of Installed Cable Entries: 7
• Number of Cable Entry Points: 7
• Spare Cable Entries Provided: 0
• Cable Diameter Range: 0.14"–0.99" (3.5–25.5 mm)
• Maximum Wire Gauge: 16 AWG
• Enclosure Material: High-Impact Polypropylene
• Waterproof Rating: IEC IP54
• Box Dimensions: 4.45" × 4.45" × 2.29"
