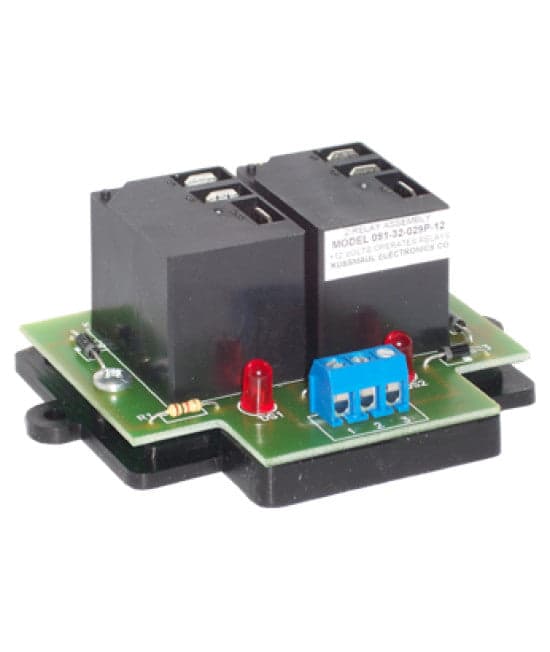

The Kussmaul Relay Board 2 provides a compact, organized solution for controlling multiple electrical loads in fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems. Designed to simplify installation and reduce wiring complexity, the Relay Board 2 combines two individually controlled relays into a single assembly, eliminating the need to separately mount and wire multiple individual relays.
Each relay is independently energized from power supplied through the integrated terminal strip and features an adjacent LED indicator that illuminates whenever the relay is active, providing convenient visual confirmation of circuit operation. Electrical loads connect directly to the top of the relays using 1/4-inch quick-disconnect terminals, while both normally open and normally closed contacts provide flexibility for a variety of switching applications. The 091-32-029P-12 model operates on 12 VDC, uses a ground common connection, and features two heavy-duty 30-amp relays. The Relay Board 2 is compatible with Kussmaul Load Manager systems and is backed by a 3-year manufacturer's warranty.
Features
• Two-relay assembly simplifies vehicle electrical system installation and wiring
• Combines two individually controlled relays into one compact assembly
• Reduces the complexity of mounting and wiring separate individual relays
• Two 30-amp relays provide dependable switching for vehicle electrical loads
• LED indicator adjacent to each relay illuminates when the relay is energized
• Normally open and normally closed contacts provide flexible circuit control
• Integrated terminal strip simplifies relay coil power and control wiring
• Electrical loads connect using 1/4" quick-disconnect terminals
• 12 VDC input operation
• Ground common connection configuration
• Compatible with Kussmaul Load Manager systems
• Easy installation for new vehicle builds and electrical system upgrades
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Two-Relay Control Board
• Model: 091-32-029P-12
• Number of Relays: 2
• Relay Contact Rating: 30 Amps
• Relay Contacts: Normally Open and Normally Closed
• Input to Operate: 12 VDC
• COM Connection: Ground
• Indicators: LED Indicator for Each Relay
• Load Connections: 1/4" Quick-Disconnect Terminals
• Control Wiring: Integrated Terminal Strip
• Compatible Equipment: Kussmaul Load Manager Systems
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
