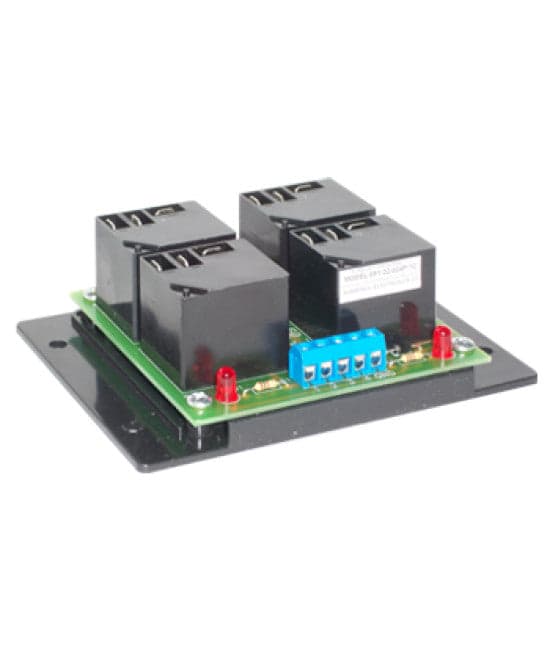

The 091-32-024P-12 Relay Board is a four relay assembly designed to simplify installation and wiring. Four relays are mounted and are energized individually from power supplied through the terminal strip. LED indicators adjacent to each relay are lit whenever the relay is energized. Load circuits are connected directly to the top of the relays with 1/4 inch quick disconnect terminals. By installing this one assembly, the complexity of mounting 4 individual relays is reduced, and much of the wiring to the relay coils is eliminated. Models are available for 12 and 24 volt operation by either supplying a voltage to the relay, or by grounding the relay coil.
- 4 relays
- 30A contacts
- LED’s indicate when relay is energized
- Normally closed and open contacts
- Use with Load Manager
- Easy installation
- 3 year warranty
