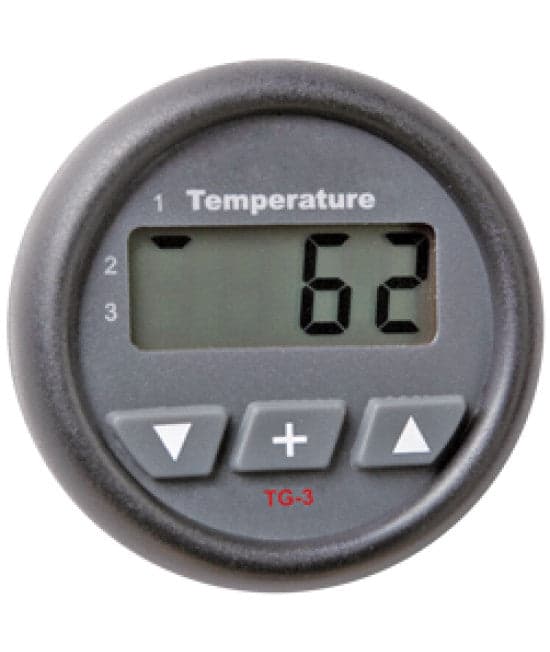

The Kussmaul Temperature Display - TG-3 is a watertight digital temperature monitoring instrument designed to monitor high-temperature conditions in air fill stations, medical supply compartments, and other temperature-sensitive areas on fire apparatus and emergency vehicles. Featuring three-zone temperature monitoring, the TG-3 continuously monitors connected sensors and displays temperature readings in either Fahrenheit or Celsius.
Independent high- and low-temperature alarms can be programmed for each connected sensor. When an alarm condition is detected, the built-in 85 dB audible alarm sounds and the display flashes to alert personnel. The LCD display provides five selectable levels of backlighting for improved visibility, while setup information, calibration constants, and alarm settings are stored in nonvolatile memory.
The TG-3 can be configured to provide either an external alarm output or standard NMEA 0183 serial data output through the screw terminal connection. The waterproof face fits a standard 2.125-inch instrument opening, and the unit includes one remote temperature sensor with a 20-foot cable for installation.
Features
• Digital temperature monitoring system with three-zone input capability
• Designed for monitoring air fill stations, medical supply compartments, and other temperature-sensitive vehicle areas
• Displays temperature readings in Fahrenheit or Celsius
• Temperature monitoring range from -20°F to 160°F (-29°C to 71°C)
• Continuously monitors all connected temperature sensors
• Independent programmable high- and low-temperature alarms for each sensor
• Built-in 85 dB audible alarm alerts personnel to temperature alarm conditions
• Digital display flashes when an alarm is activated
• LCD display with five selectable levels of backlighting
• Stores setup information, calibration constants, and alarm settings in nonvolatile memory
• Programmable external alarm output or NMEA 0183 serial data output
• Waterproof face fits a standard 2.125-inch instrument opening
• Includes one remote temperature sensor with 20-foot cable
• Watertight construction for demanding emergency vehicle installations
• 3-year warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Digital Temperature Monitoring Display
• Model: TG-3
• Number of Temperature Zones: 3
• Temperature Range: -20°F to 160°F (-29°C to 71°C)
• Display Units: Fahrenheit or Celsius
• Accuracy: 1% of Full Scale ±1 Degree
• Alarm Types: Programmable High- and Low-Temperature Alarms
• Audible Alarm Level: 85 dB
• Backlighting: 5 Selectable Levels
• Data Output: External Alarm Output or NMEA 0183 Serial Data Output
• Power Supply: 9.5 to 33.0 VDC
• Nominal Current Draw: 0.035 Amps
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Mounting Opening: Standard 2.125-Inch Instrument Hole
• Included Sensor: One Remote Temperature Sensor with 20-Foot Cable
• Display Type: Digital LCD
• Construction: Watertight
• Weight: 0.25 lbs.
• Warranty: 3 Years
