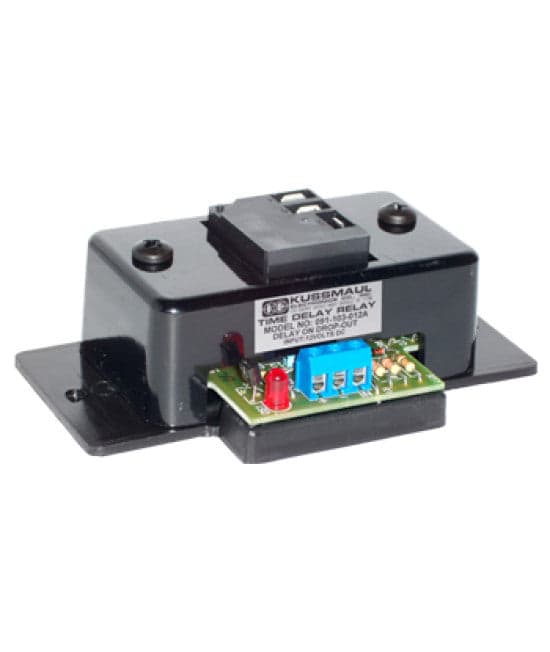

The Kussmaul Time Delay Relay – DODO-A is a field-adjustable relay designed to keep an electrical load energized for a predetermined time interval after the controlling signal is removed. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, this compact relay provides dependable delayed shutoff control for interior lighting and other 12 VDC electrical accessories that need to remain powered temporarily after the control signal is turned off.
When a +12 VDC control signal is applied, the relay closes immediately and energizes the connected load. When the control signal is removed, the relay remains energized for the selected delay interval before automatically returning to its normal state. The field-adjustable delay can be set from 1.5 to 6 minutes, with a factory set point of 3 minutes. Both normally open and normally closed 30-amp relay contacts are provided for flexible circuit integration. The relay requires three input connections: +12 VDC power, ground, and a +12 VDC control signal.
Features
• Keeps connected electrical loads energized for a preset interval after the control signal is removed
• Relay closes immediately when the +12 VDC control signal is applied
• Adjustable delayed drop-out operation provides automatic load shutoff control
• Field-adjustable time delay from 1.5 to 6 minutes
• Factory time delay set point of 3 minutes
• Heavy-duty 30-amp relay contacts provide dependable load control
• Normally open and normally closed contacts provide flexible circuit configurations
• Requires +12 VDC power, ground, and a +12 VDC control signal
• Ideal for interior lighting and other accessories that must remain powered temporarily after shutdown
• Compact design simplifies installation in vehicle electrical systems
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Adjustable Time Delay Relay
• Model: DODO-A
• Product Code: 091-103-012-A
• Relay Operation: Immediate Activation with Delayed Drop-Out
• Drop-Out Function: Yes
• Input Voltage: 12 VDC
• Relay Contact Rating: 30 Amps
• Relay Contacts: Normally Open and Normally Closed
• Minimum Time Delay: 1.5 Minutes
• Maximum Time Delay: 6 Minutes
• Time Delay Set Point: 3 Minutes
• Time Delay Adjustment: Field Adjustable
• Input Connections: +12 VDC Power, Ground, and +12 VDC Control Signal
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
