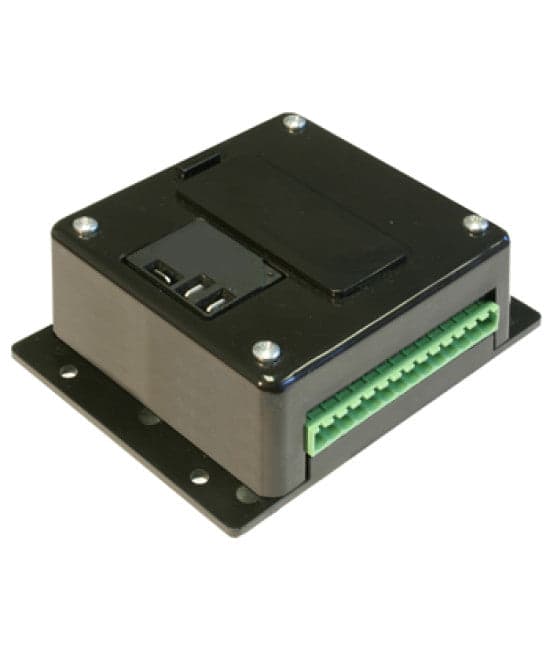

The precise TIMER-X universal timer may be operated in any of three modes, DOPI, DODO or CYCLE. The quartz crystal based timer intervals are easily and accurately set in the field using switches and a small screwdriver. The timer supports intervals in the broad range of one second to 99 hours. In the Cycle mode the ON and OFF time are independently controlled and may be set over the full range of time from 1 second to 99 hours. The heavy-duty, 30 ampere, output relay provides both normally OPEN and normally CLOSED contacts and a red LED indicates when the relay is energized.
Flexible input triggering allows for either +12 VDC or a contact closure to ground to initiate the timing cycle.
Delay-on-Pull in relay, DOPI
Delay-on Drop-Out relay, DODO
Cycle-Timer relay
- Timer utilizes switches for precise Settings from 1 Second to 99 Hours
- 30 Amp relay switches AC or DC loads
- Flexible triggering either +12 volt or ground
- Operates on DC or AC Power
- 3 year warranty
