Description

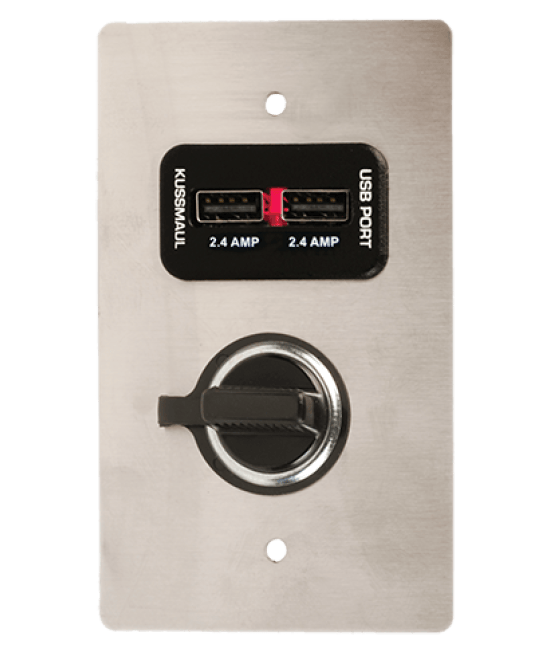

The Kussmaul USB EZ Mount Assembly provides a convenient combination of dual USB charging ports and a 12V accessory outlet for emergency response vehicles. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicles, this compact charging assembly delivers reliable power for smartphones, tablets, GPS units, and other electronic devices without requiring installation into an existing switch panel.
The dual USB charging ports provide up to 4.8 amps total output, allowing users to charge two tablets simultaneously or a smartphone and tablet at the same time. A built-in red LED power indicator confirms the unit is energized, while reverse polarity protection helps safeguard the USB charging circuit. The assembly operates on 10–30 VDC systems, making it compatible with both 12V and 24V vehicles, and can be connected to switched ignition or directly to the vehicle battery. The USB EZ Mount Assembly is backed by a 3-year manufacturer's warranty.
Features
• Dual USB charging ports with integrated 12V accessory outlet
• Delivers up to 4.8 amps total USB charging output
• Charges two tablets simultaneously or a smartphone and tablet at the same time
• Built-in red LED indicates the unit is powered
• Reverse polarity protected USB charging circuit
• Compatible with both 12V and 24V vehicle electrical systems
• Can be connected to switched ignition or directly to the vehicle battery
• Designed for easy installation where switch panels are not accessible
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicles
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: USB EZ Mount Assembly
• USB Input Voltage: 10–30 VDC (10–32 VDC Absolute Minimum/Maximum)
• USB Output Voltage: 4.8–5.2 VDC
• USB Charging Capacity: 4.8 Amps Total
• 12V Accessory Outlet Output: 30 Amps Maximum
• Indicator: Red LED (Power On)
• Weight: 0.10 lbs.
• Warranty: 3-Year Manufacturer's Warranty
