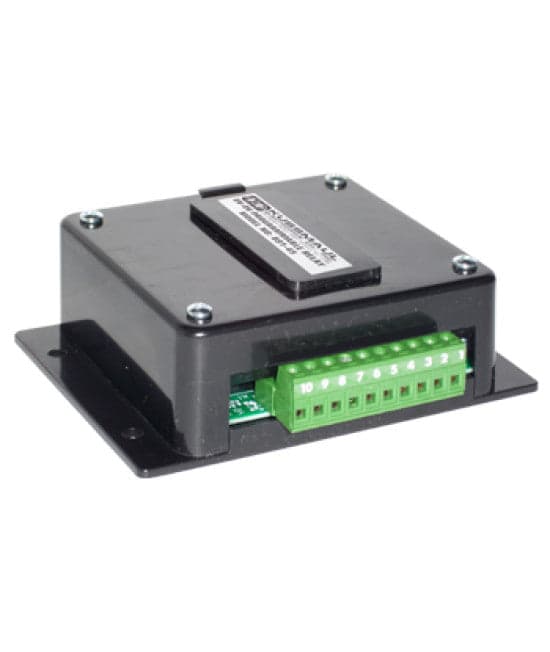

The Kussmaul UV-OV Relay is a programmable voltage monitoring device designed to continuously monitor battery system voltage and detect both under-voltage and over-voltage conditions. Designed for fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems, the UV-OV Relay helps alert operators to abnormal voltage conditions that could result in discharged batteries, electrical system problems, or battery overcharging.
The under-voltage and over-voltage trip points are independently programmed using accessible 3-position DIP switch banks located beneath a snap-on protective window. The under-voltage trip point can be selected from eight settings ranging from 11.44 to 13.01 VDC, while the over-voltage trip point can be selected from eight settings ranging from 13.66 to 15.06 VDC. Independent heavy-duty relay contacts are provided for both voltage conditions, allowing compatible alarms, indicators, or other warning devices to be activated when abnormal voltage is detected. Three integrated LED indicators simplify system monitoring and troubleshooting, with yellow indicating under voltage, green indicating normal voltage, and red indicating over voltage.
Features
• Continuously monitors vehicle battery system voltage
• Detects both under-voltage and over-voltage conditions
• Helps warn operators of low-voltage conditions that could result in discharged batteries
• Helps warn operators of excessive voltage conditions that could lead to battery overcharging or boil-over
• Independently programmable under-voltage and over-voltage trip points
• Eight selectable settings for under-voltage detection
• Eight selectable settings for over-voltage detection
• Easy-to-use DIP switches simplify voltage trip point programming
• Snap-on window cover provides convenient access to programming switches and indicators
• Heavy-duty relay contacts provided independently for under-voltage and over-voltage conditions
• Relay outputs can operate compatible alarms, indicators, and other warning devices
• Yellow LED indicates an under-voltage condition
• Green LED indicates normal system voltage
• Red LED indicates an over-voltage condition
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty
Specifications
• Manufacturer: Kussmaul Electronics
• Product Type: Programmable Under/Over Voltage Monitoring Relay
• Voltage Monitoring: Under Voltage and Over Voltage
• Under-Voltage Program Range: 11.44 to 13.01 VDC
• Under-Voltage Programming: 8 Selectable Settings in 7 Discrete 0.22 VDC Increments
• Over-Voltage Program Range: 13.66 to 15.06 VDC
• Over-Voltage Programming: 8 Selectable Settings in 7 Discrete 0.20 VDC Increments
• Programming Device: Three DIP Switches for Under Voltage and Three DIP Switches for Over Voltage
• Relay Contacts: Heavy-Duty Relay Contacts for Under-Voltage and Over-Voltage Conditions
• Indicators: Yellow LED – Under Voltage; Green LED – Normal Voltage; Red LED – Over Voltage
• Weight: 0.5 lbs.
• Warranty: 3-Year Manufacturer's Warranty
