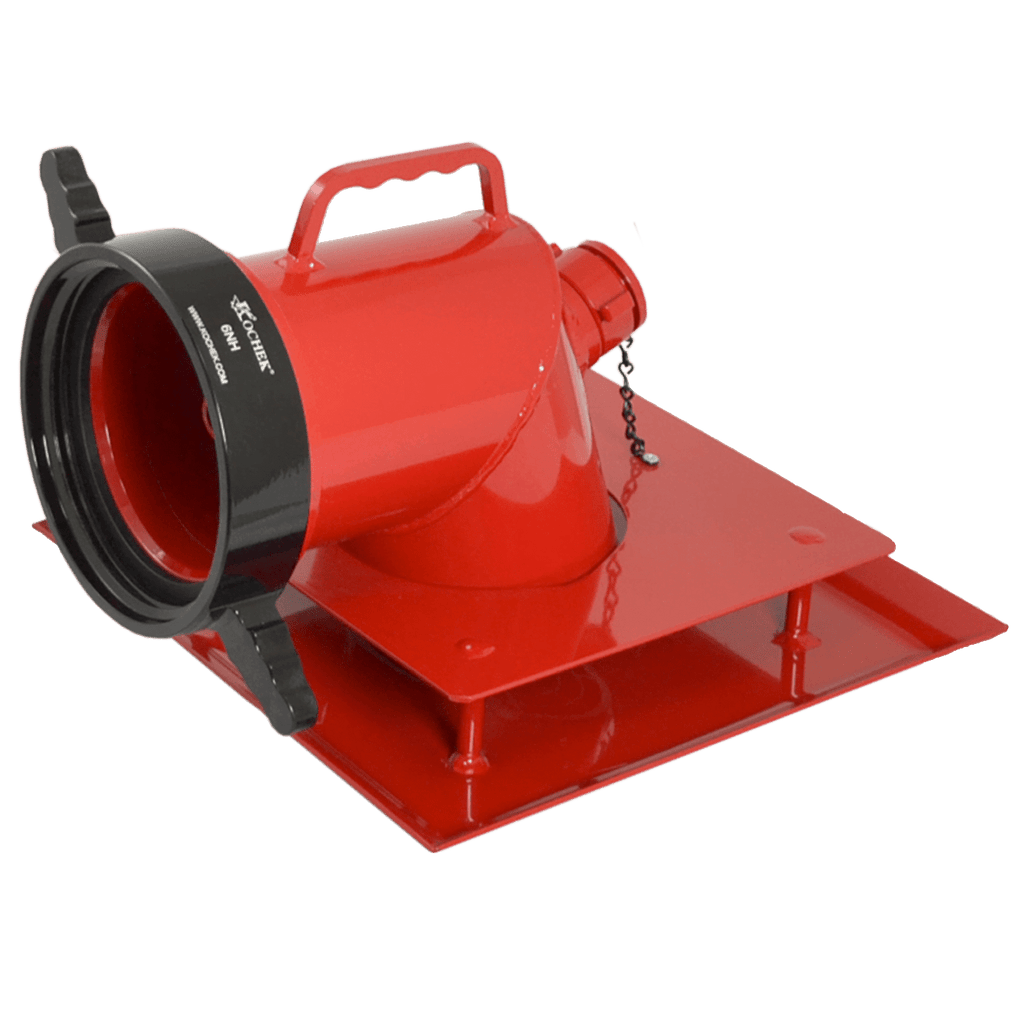

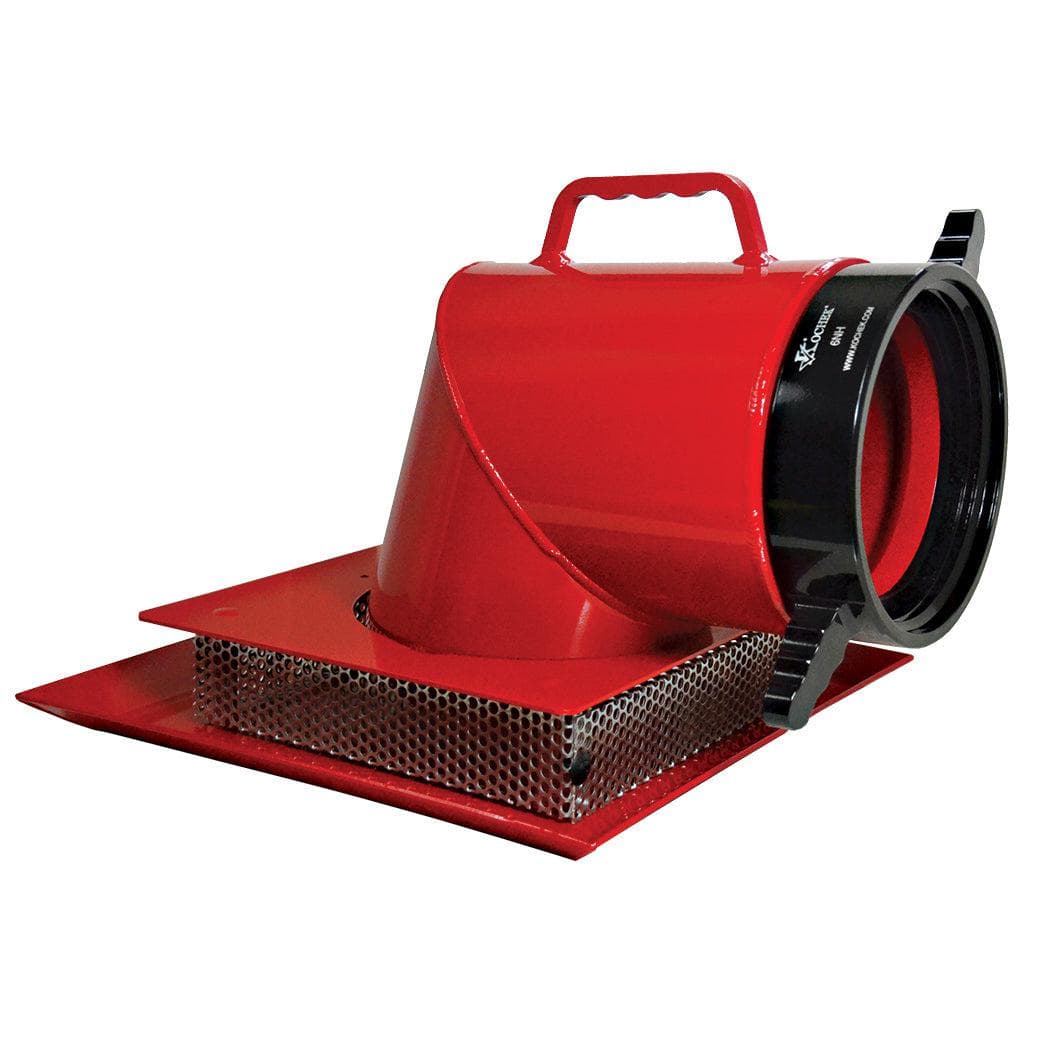

The Kochek Low Level Strainer is designed to maximize water drafting efficiency by allowing fire departments to draft from shallow water sources while minimizing the amount of unusable water left behind. Ideal for rural firefighting, tanker shuttle operations, and portable water supply, the strainer drafts water down to approximately 2 inches from the bottom of the water source, helping maximize available water during emergency operations.
Constructed from lightweight, corrosion-resistant aluminum alloy, the Low Level Strainer features a pivoting adjustable elbow that provides flexible hose positioning during drafting. The reinforced base pan incorporates additional side walls to help prevent damage to portable tanks, while larger 4-inch through 6-inch models feature a built-in jet siphon that also allows the strainer to function as a water transfer device. Internal screening is standard on 2-1/2" through 6" models, while 6" Big Water versions utilize an external screen for maximum flow. Available with a variety of female threaded connections, the Low Level Strainer meets applicable NFPA standards for dependable fire service performance.
Features
• Designed for efficient drafting from shallow water sources
• Ideal for rural firefighting, tanker shuttle, and portable water supply operations
• Drafts water down to approximately 2" from the bottom of the water source
• Lightweight aluminum alloy construction provides durability and corrosion resistance
• Pivoting adjustable elbow allows flexible hose positioning
• Reinforced base pan with additional side walls helps eliminate portable tank damage
• Built-in jet siphon on 4" and larger models allows use as a water transfer device
• Internal screen standard on 2-1/2" through 6" models
• External screen standard on 6" Big Water models
• Available with multiple female threaded connection options
• Meets applicable NFPA standards
Specifications
• Manufacturer: Kochek
• Product Type: Low Level Drafting Strainer
• Material: Lightweight Aluminum Alloy
• Drafting Capability: Down to approximately 2" from bottom
• Elbow: Pivoting Adjustable
• Water Transfer Capability: Built-in jet siphon on 4" and larger models
• Screen Type: Internal (2-1/2"–6"), External (6" Big Water)
• Connection Type: Female Threaded (varies by model)
• Compliance: Meets NFPA Standards
• Applications: Rural firefighting, drafting, tanker shuttle operations, and emergency water supply
