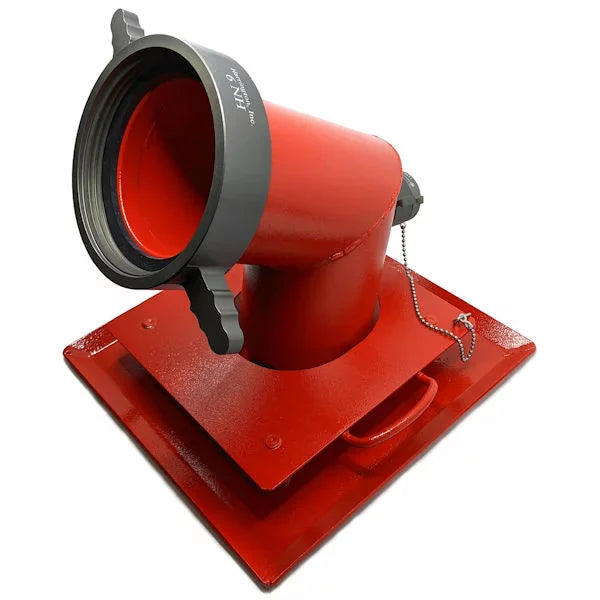

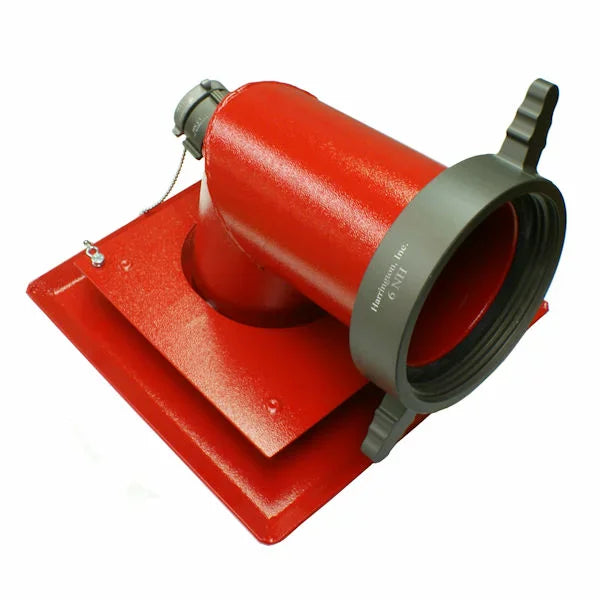

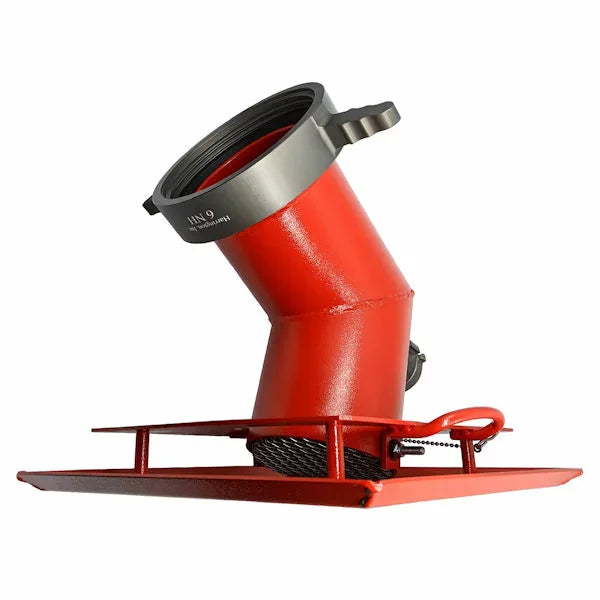

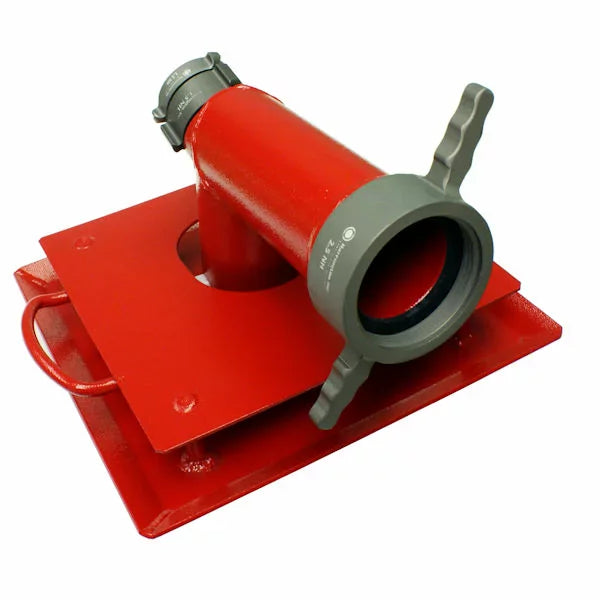

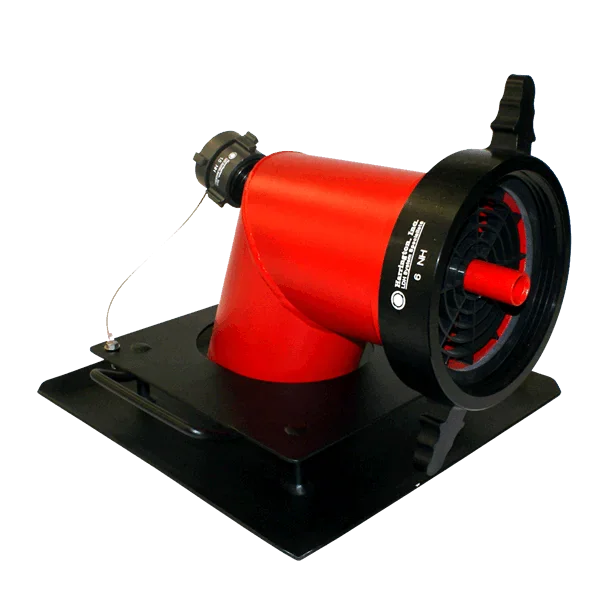

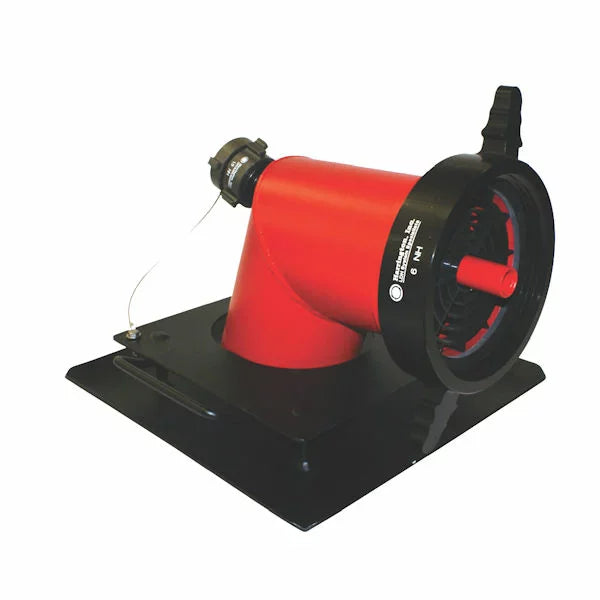

The Low Level Strainers with Jet Siphon – Female Swivel are designed to maximize water recovery from shallow water sources where conventional drafting equipment may be ineffective. Capable of drafting from water depths as low as 1.5 inches, these strainers help fire departments access valuable water supplies from portable tanks, ponds, flooded areas, swimming pools, and other low-water environments.
Constructed from durable powder-coated aluminum, these strainers feature an internal debris screen that helps prevent foreign material from entering the pump system. The pivotal neck design allows for improved hose positioning and alignment during drafting operations, while the integrated 1.5" NH jet siphon connection enhances water transfer capabilities. Each model is equipped with an NH female long handle swivel connection, allowing for secure attachment and easier handling during setup and removal.
Features
• Drafts water from depths as low as 1.5 inches
• Integrated 1.5" NH jet siphon connection
• Durable powder-coated aluminum construction
• Internal debris screen helps protect pumps and equipment
• Pivotal neck design improves hose positioning and alignment
• NH female long handle swivel connection for easy operation
• Long-handle design provides improved grip with gloved hands
• Ideal for shallow water drafting operations
• Suitable for portable tanks, ponds, flooded areas, and emergency water supply incidents
• Designed for municipal, rural, and industrial firefighting applications
Specifications
• Manufacturer: Harrington
• Product Type: Low Level Strainer with Jet Siphon
• Construction Material: Powder-Coated Aluminum
• Connection Type: NH Female Long Handle Swivel
• Thread Standard: NH (National Hose)
• Jet Siphon Connection: 1.5" NH
• Minimum Drafting Depth: 1.5" Water Level
• Debris Protection: Internal Screen
• Neck Design: Pivotal Neck
• Application: Drafting and Water Supply Operations
Available Models
• HTLLS-25NHLH — 2.5" Low Level Strainer with 2.5" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
• HTLLS-30NHLH — 3" Low Level Strainer with 3" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
• HTLLS-40NHLH — 4" Low Level Strainer with 4" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
• HTLLS-45NHLH — 4.5" Low Level Strainer with 4.5" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
• HTLLS-50NHLH — 5" Low Level Strainer with 5" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
• HTLLS-60NHLH — 6" Low Level Strainer with 6" NH Female Long Handle Swivel and 1.5" NH Jet Siphon
