Mansaver Aerial Bar
Use the Aerial bar at the end of the ladder across from the opening to the bucket. Like the standard ManSaver, it is spring loaded so an operator doesn’t have to remember to close or latch it.

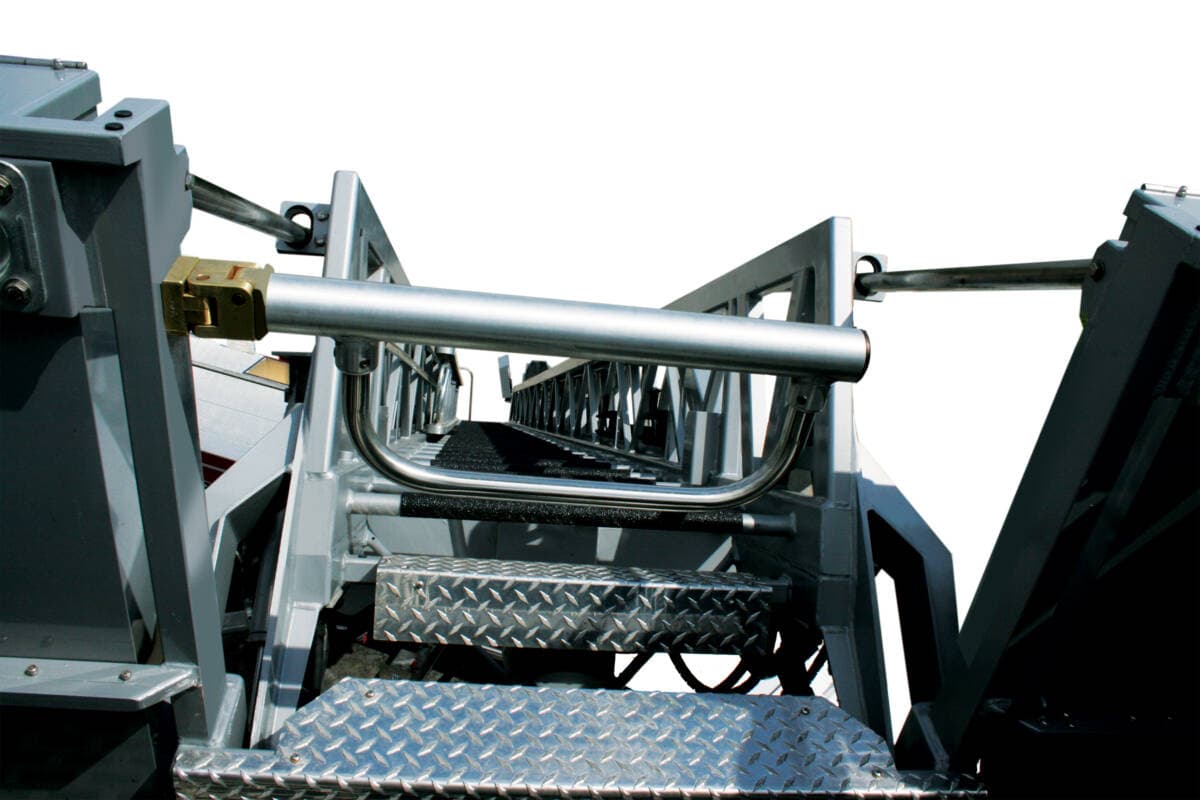

The aerial bar is a variation on the standard ManSaver. This bar has a stainless steel U-shaped tube welded to it to cover more area and to help prevent a person from slipping underneath the bar. Designed for use at the top of an aerial device, at the back of the “bucket” where the ladder leads down to the elevated turntable.
Aerial Bar Mounting
The standard bar mounts on the left as you enter the basket from the ladder. If this mount will interfere with a control panel in the basket, an aerial bar that mounts on the opposite side is available. The bar has a 6″ or 10″ stainless loop welded to an unpadded ManSaver.
Features
-
Opens in two directions (up and in).
-
Available in two standard sizes of 24″ and 26″.
-
Stainless loop welded under the bar provides added safety.
-
Spring loaded to always return to a closed position.
-
4 grade-8 mounting bolts are provided.
-
All aluminum extrusion and aluminum bronze castings – cannot rust.
